SUNGOLD POWER 13KW OFF-GRID SOLAR KIT (120/240V SPLIT-PHASE, 48V)
The SunGold Power SGM-1320M is a complete off-grid solar power kit designed to deliver reliable 120/240V split-phase electricity for cabins, homes, and remote properties. This system includes 13,000W of inverter power, a 4.44kW solar array, and a long-lasting 20.48kWh LiFePO₄ PowerWall battery bank—giving you stable backup power and dependable daily energy storage without fuel or noise.
Built for homeowners who want clean, quiet power with strong runtime and expansion flexibility.
SERIOUS 120/240V POWER (13,000W PURE SINE WAVE)
This kit uses 2 × 6,500W split-phase inverters to provide 13,000W of continuous output with clean pure sine wave power—safe for sensitive electronics and strong enough for real household loads.
Inverter specs (highlights):
-
AC Output: 13,000W (2 × 6,500W)
-
Output waveform: Pure Sine Wave
-
Output voltage: 120/240VAC (split phase / single phase)
-
Parallel function: Up to 6 units parallel
-
Efficiency: 93%
-
Max charging current: 140A
-
Maximum PV array power: 5,000W + 5,000W
-
Warranty: 3 years
SOLAR ARRAY (12 × 370W PANELS = 4,440W)
Included are 12 × 370W monocrystalline solar panels—a dependable array size for daily battery charging, essential home circuits, and long-term off-grid use.
Panel specs (highlights):
-
Peak power: 370W
-
Solar cell: Monocrystalline
-
Product tolerance: ±3%
-
Max power current (Imp): 11.15A
-
Max power voltage (Vmp): 33.2V
-
Short circuit current (Isc): 11.81A
-
Open circuit voltage (Voc): 40.17V
-
Warranty: 25 years
-
Certifications: UL61730, CEC Listed
POWERWALL BATTERY STORAGE (20.48KWH TOTAL)
This kit includes 4 × 51.2V 100Ah LiFePO₄ PowerWall batteries, delivering 20.48kWh total storage—ideal for overnight power, reserve capacity, and long battery life.
Battery specs (highlights):
-
Nominal voltage: 51.2V
-
Nominal capacity: 100Ah
-
Energy: 5.12kWh each (20.48kWh total)
-
Cycle life: ≥7000
-
Communication protocol: RS232 / RS485 / CAN
-
Storage temperature: -10°C to +45°C
-
Warranty: 10 years
BEST FOR
-
Off-grid cabins and homes
-
Essential household circuits + appliances
-
Quiet backup power (no fuel, no fumes)
-
Customers who want wall-mounted batteries
-
Split-phase 120/240V power needs
Specifications

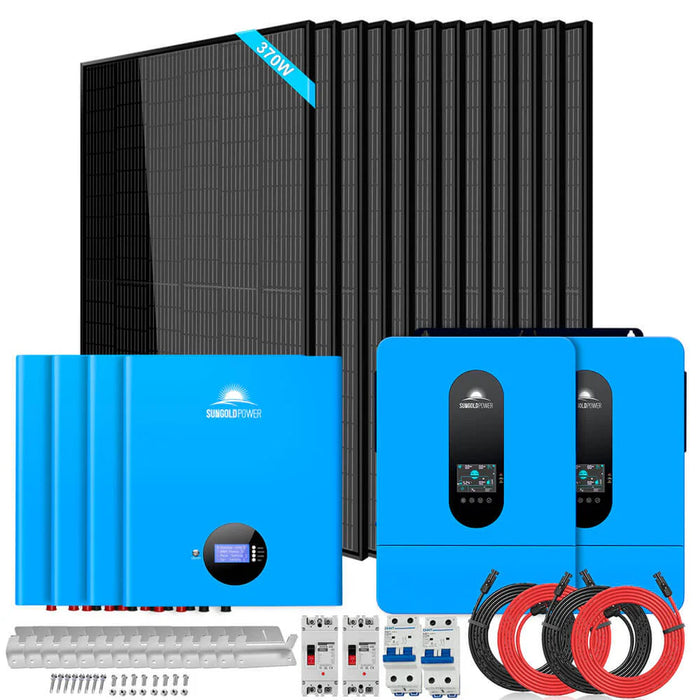

What's in the Box
-
2 × 6,500W 48VDC 120/240VAC output inverter
-
12 × 370W monocrystalline solar panels
-
4 × 100Ah 51.2V PowerWall LiFePO₄ batteries
-
2 sets × 50 ft solar extension cables (inverter PV input)
-
12 sets of mounting Z-brackets
-
2 × 200A DC breakers
-
2 × 25A PV breakers
-
Wiring + kit accessories (as included)
NEED HELP CONFIRMING THIS KIT FITS YOUR HOME?
Tell us what you want to run (fridge/freezer, well pump, lights, tools, heating, etc.) and we’ll help confirm the best setup before you order. Click Here
