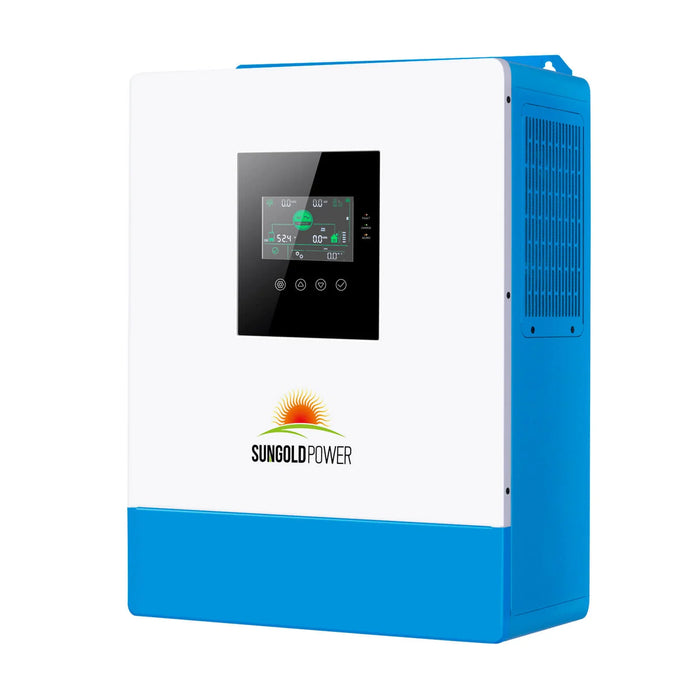

Sungold Power - 5000W 48V Solar Charger Inverter

Description

Sungold Power - 5000W 48V Solar Charger Inverter

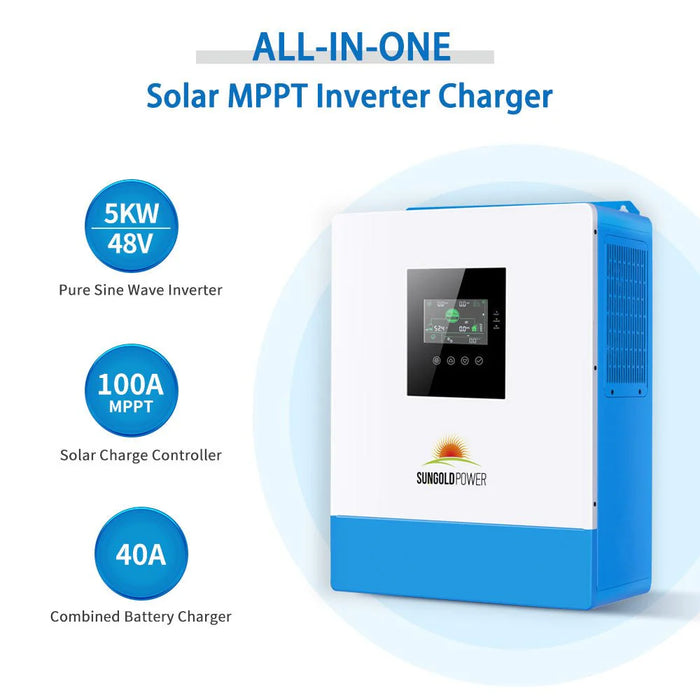

The all-in-one solar hybrid inverter is a 5000-watt pure sine wave inverter with a maximum battery charging capacity of 100A (solar + AC) and supports a maximum 5500W 500V PV array. This inverter integrates both grid-tied and off-grid functionality, offering versatility for various power needs. UL1741 Listed by ETL.

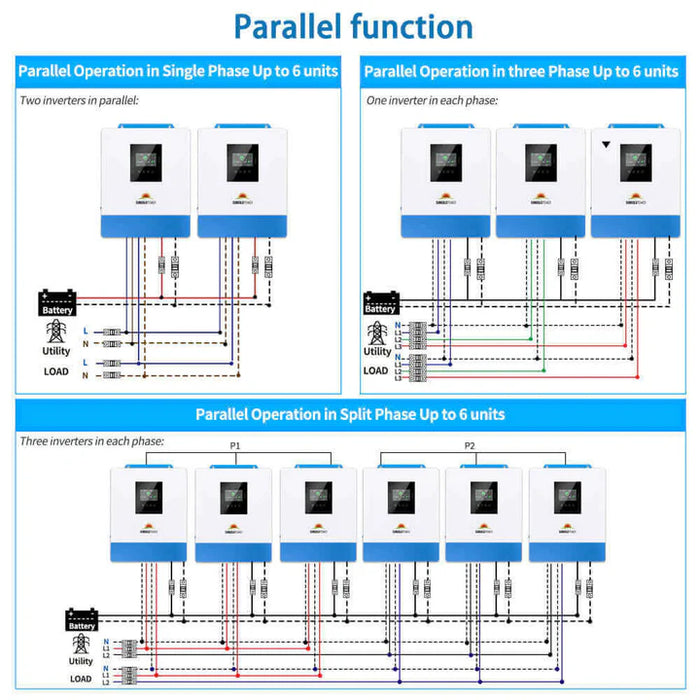

• Parallel Kit: Supports parallel connection of up to six units, increasing power output to 30kW. This allows for configurations of 120V single-phase, 120V/240V split-phase (with more than two units in parallel), and 208V three-phase (with more than three units in parallel). This enhances both inverter power and surge capacity.

• Stable AC Output: Provides 5000 watts of pure sine wave 110V AC output, capable of handling motor loads up to 4HP and featuring overload protection. It can power a variety of household and office appliances, including refrigerators, computers, televisions, ovens, and air conditioners.

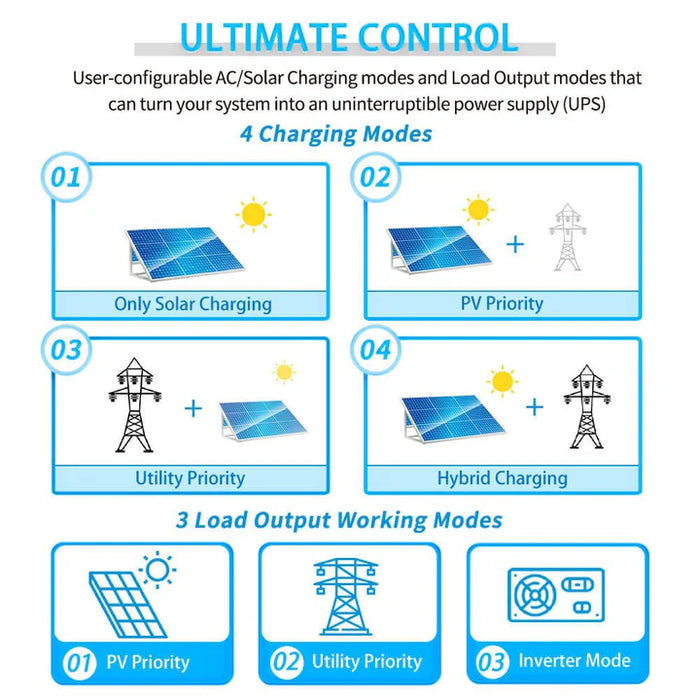

• Multiple Charging and Output Modes: Offers four charging modes: AC Priority, Solar Priority, Only Solar, and Mains & Solar Hybrid Charging. Additionally, it features four output modes: PV Priority, Utility Priority, Inverter Priority, and Hybrid Output with grid connection, ensuring adaptability to different power needs.

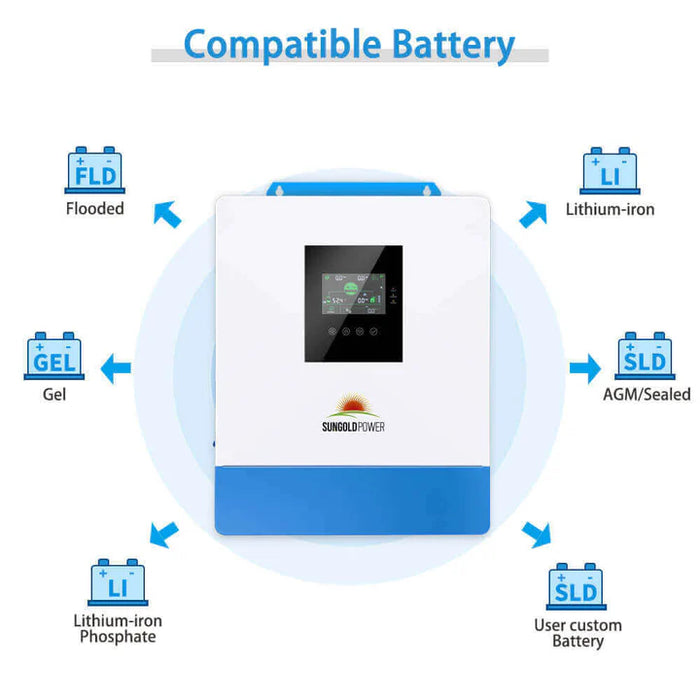

• Battery Compatibility: Designed to work with 48V AGM/sealed, gel, flooded, and lithium batteries. It includes a user-configurable mode for custom inputs, ensuring compatibility with nearly all battery types. The battery charging voltage range is 40-60V, and an RS485 port is available for BMS communication.

Specifications

Sungold Power - 5000W 48V Solar Charger Inverter

Downloads

5000W Specification Sheet

User Manual

Warranty
