Description

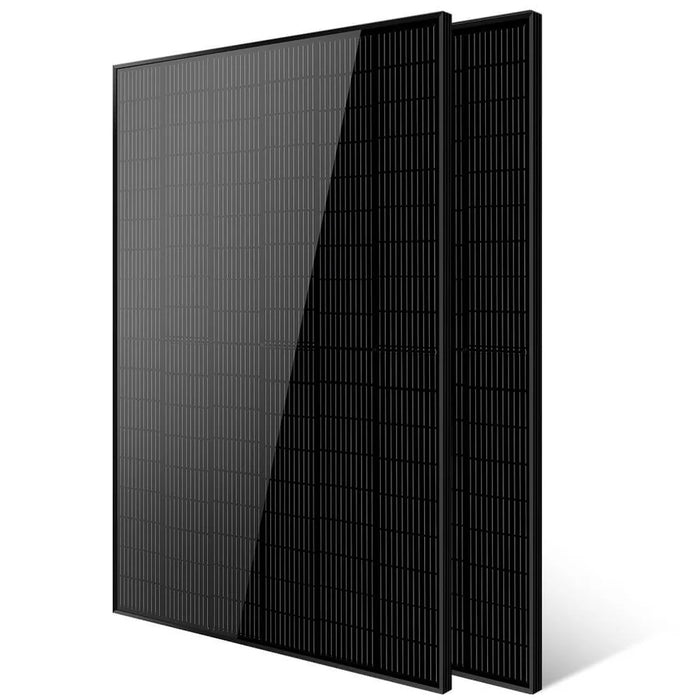

Off-Grid & On-Grid Hybrid Solar Panels - 415W
This high-efficiency PERC solar panel is designed for on-grid, off-grid, and hybrid solar systems. Store energy with batteries, reduce electricity bills, or power a complete off-grid home with dependable performance and long-term durability.

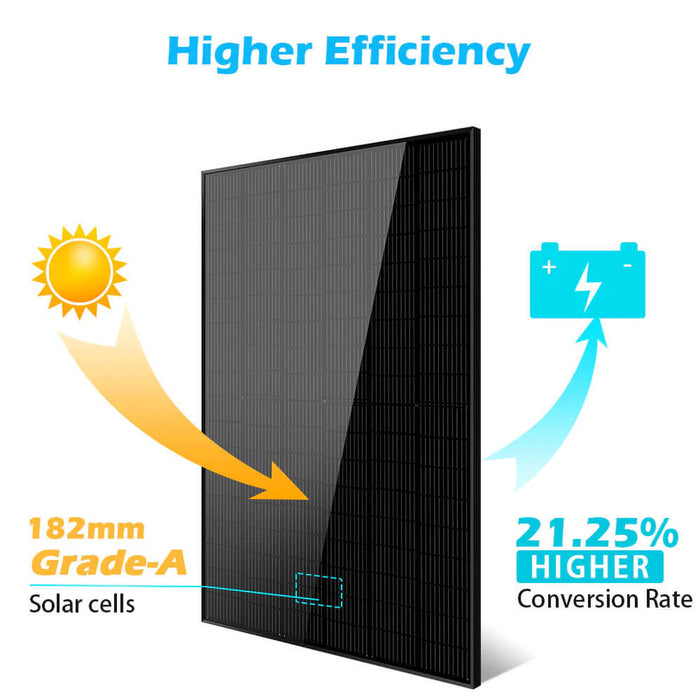

High Efficiency
High-efficiency monocrystalline PERC module featuring 182 mono half-cells with a sleek all-black design.

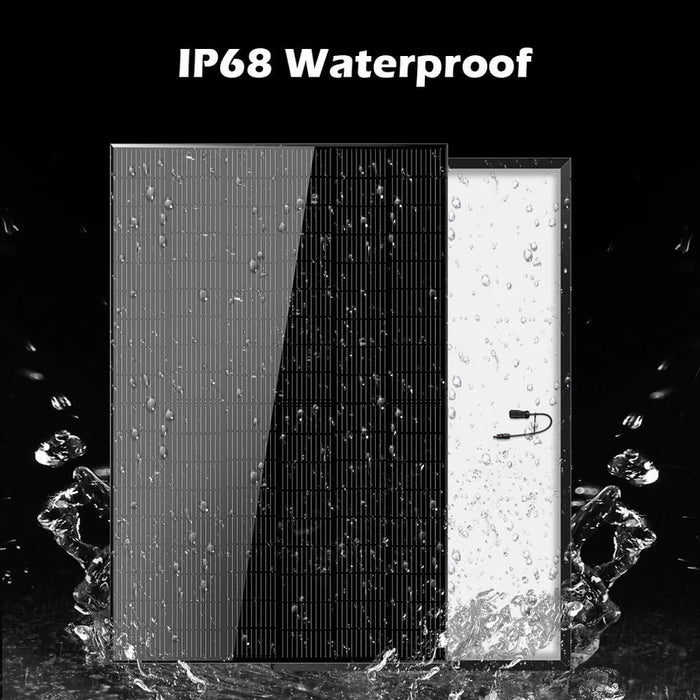

Waterproof Protection (IP68)
The junction box and connectors feature an IP68 rating, providing full dust protection and reliable operation even after temporary water immersion (up to 1 meter).

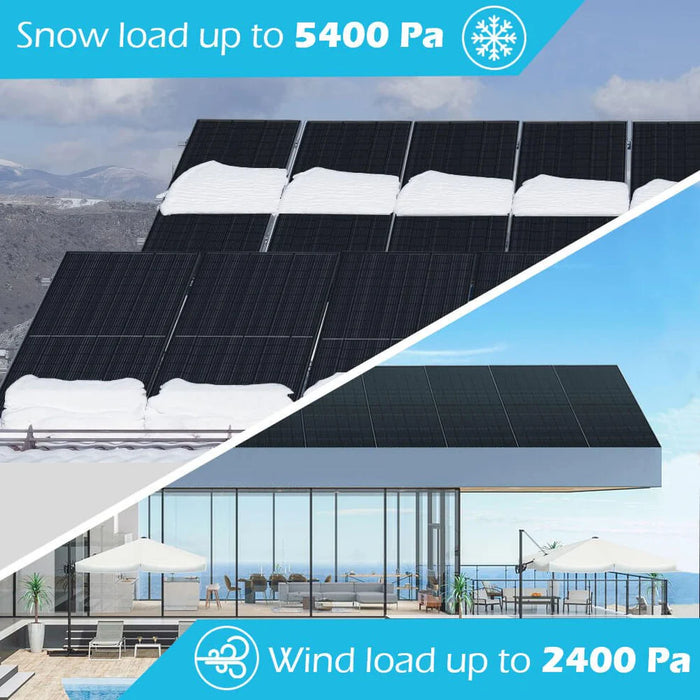

Snow & Wind Resistance
Built for harsh conditions—tested to withstand:
-
5400 Pa snow load
-
2400 Pa wind pressure

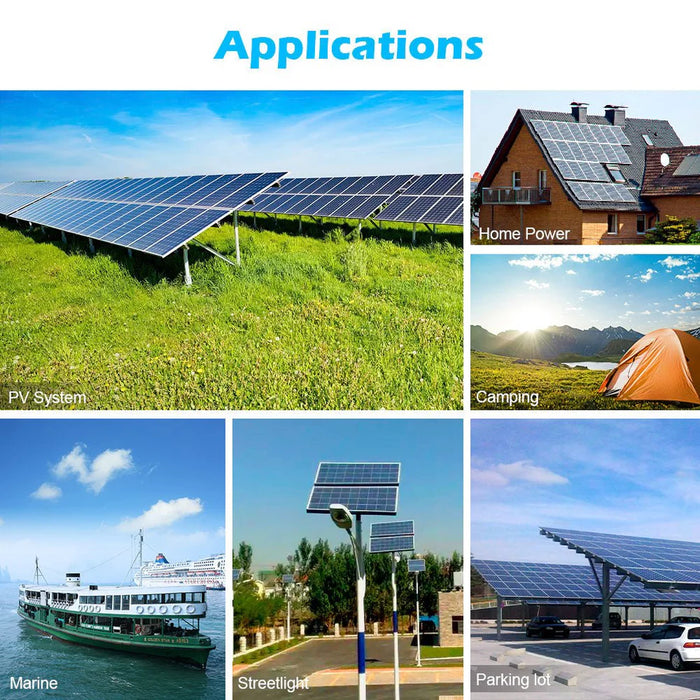

Wide Applications
Ideal for home solar systems, cabins, workshops, and hybrid setups where stable, cost-effective power matters.



Specifications
| Model Type | SG415WM | SG370WM | SG500WM |
|---|---|---|---|
| Peak Power (Pmax) | 415W | 370W | 500W |
| Production tolerance | ±3% | ±3% | ±3% |
| Maximum Power Current (Imp) | 13.13 A | 11.15 A | 13.30A |
| Maximum Power Voltage (Vmp) | 31.6V | 33.2V | 37.60V |
| Short Circuit Current (Isc) | 14.02A | 11.81A | 14.09A |
| Open Circuit Voltage (Voc) | 37.50V | 40.17V | 44.36V |
| Maximum System Voltage | 1500V | 1500V | 1500V |
| Wind Resistance | 2400Pa | 2400Pa | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) | 12 AWG (1ft per cable) | 12 AWG (1ft per cable) |
| Number of Cells | 108(6*18) | 120(6*20) | 132(6*22) |
| Cell Type | Mono 182*91mm | Mono182mm | PERC Mono182*91mm |
| Certifications | UL 61730 CE TUV CEC Listed | UL 61730 CE TUV CEC Listed | UL 61730 CE TUV CEC Listed |
| Product Weight | 45.8lbs | 41.8lbs | 56.2lbs |

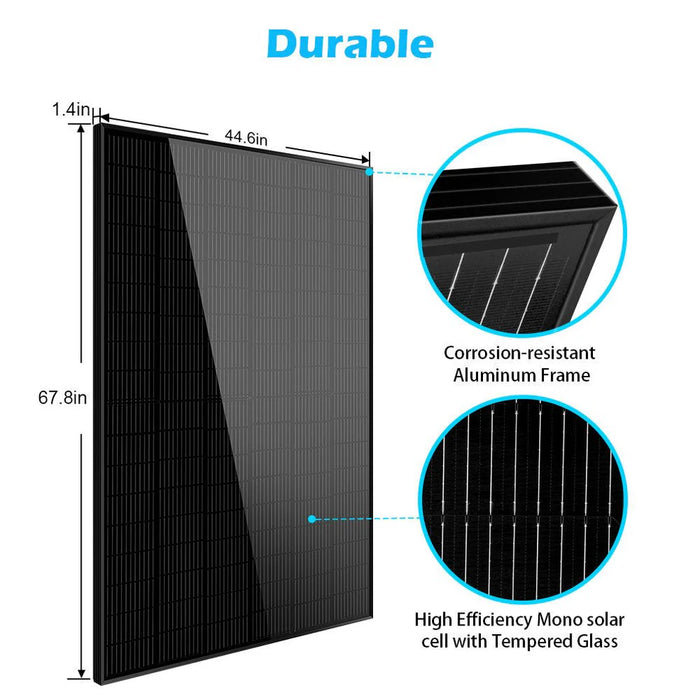

| Product Dimension | 67.8*44.6*1.4inch | 63.23*44.65*1.38inch | 82.44*44.65*1.38inch |
| Package Weight | 100.5lbs(2PCS) | 93.5lbs(2PCS) | 124.6lbs(2PCS) |
Downloads
415W Mono Black Solar Panel User Manual
