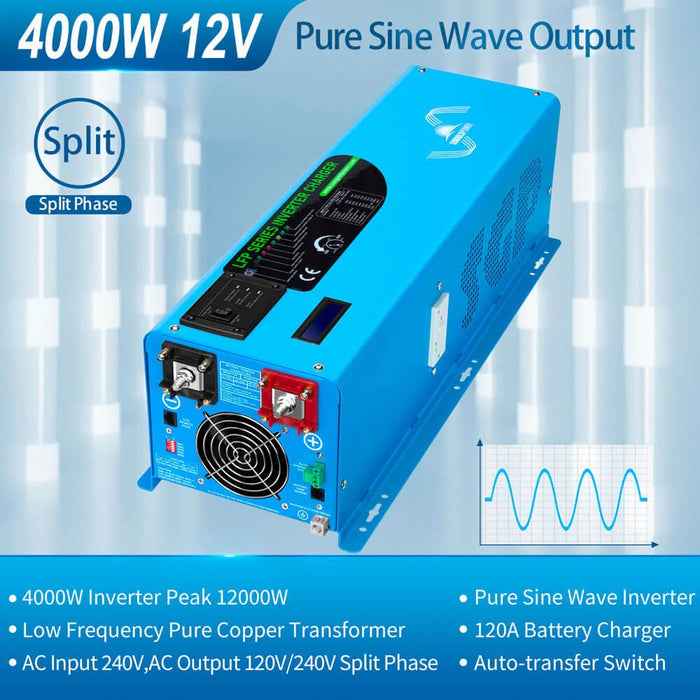

Sungold Power - 4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger

Description

Sungold Power - 4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger

This LFP Series Pure Sine Wave Inverter combines an inverter, battery charger, and automatic AC transfer switch into one comprehensive unit. Designed with low-frequency operation, it features low idle power consumption, a BTS cable, and a remote control for easy operation.

The split-phase 4000-watt inverter requires a 240VAC input and provides both 120VAC and 240VAC output power, making it suitable for a wide range of appliances. The output frequency can be set to either 50Hz or 60Hz using the SW4 switch.

AC/Battery Priority: This inverter is configured with AC priority by default. Users can switch to battery priority mode using the SW5 switch for customized power management.

Adjustable Charging Current: The charging current can be adjusted between 0% and 100% using a linear switch, allowing flexibility based on battery needs.

Auto Generator Start: When the battery voltage drops too low, the inverter can automatically start a connected generator and shut it off once the charging process is completed.

The SunGoldPower LFP 4000-Watt DC 12V AC 120/240V Split Phase Inverter Charger is a premium-quality low-frequency power inverter. Designed for powering small homes, businesses, RV systems, trailers, and boats, this inverter charger is an excellent choice for off-grid systems or as an emergency backup power source.

This split-phase inverter requires a 240VAC input and provides an output of 110/120V or 220/230/240V. It can also generate two legs of 110V power, making it an ideal solution for residential and commercial setups with a 220V panel. The output frequency is adjustable to either 50Hz or 60Hz using the SW4 switch.

Specifications

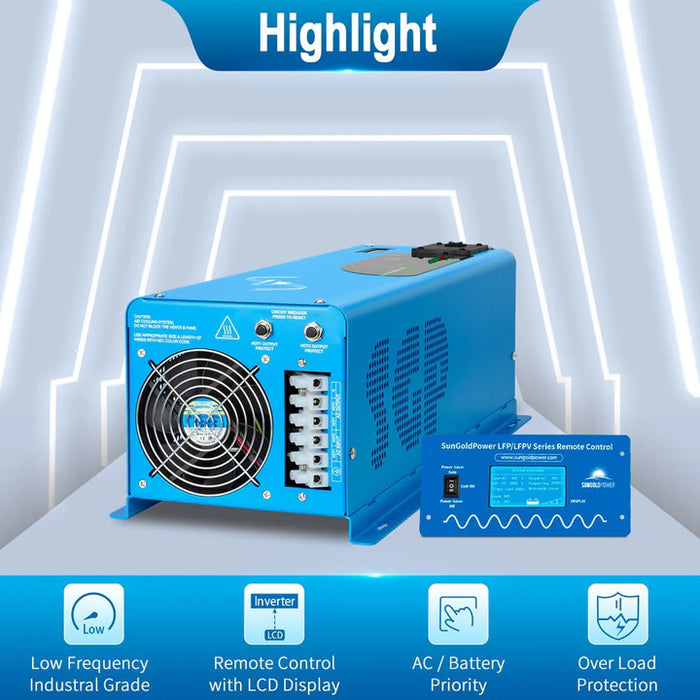

Main Features

• 4000W Low-Frequency Pure Sine Wave Inverter with Charger
• AC/Battery Priority Selector for Enhanced Power Control
• Automatic Generator Start Function
• Safe and Convenient Power Management
• Compatible with Various Appliances
• LCD Display with Remote Control
• Low Power Consumption in Idle Mode

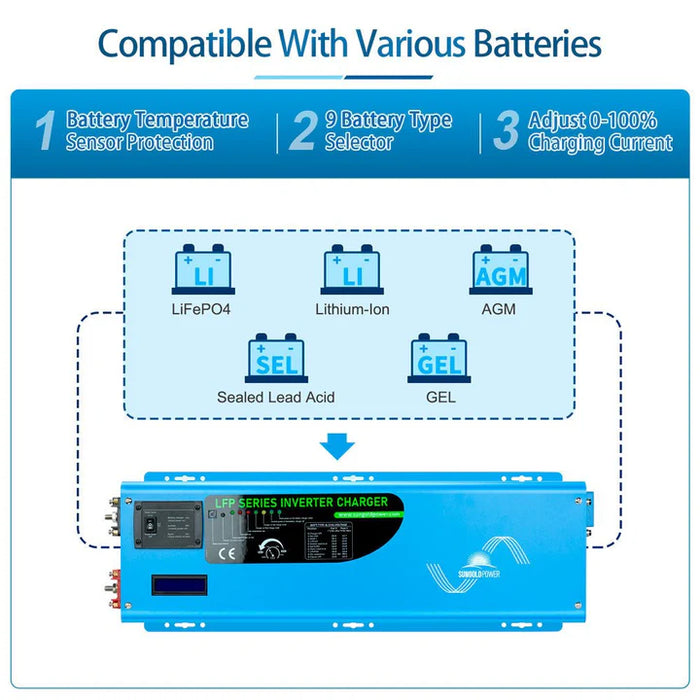

• 9 Battery Type Settings for Optimized Charging
• Multi-Stage Smart Charger (120A ±5A) with Optional Disable Function
• Fast Transfer Time of Approximately 10ms

Inverter Output

• Continuous Output Power: 4000W
• Surge Power: 12000W (20 Seconds)
• AC Output: 120V and 240V
• AC Input: 240V
• Output Waveform: Pure Sine Wave (Bypass Mode)
• Typical Transfer Time: 10ms (Max)
• Nominal Efficiency: >88%

DC Input

• Nominal Input Voltage: 12.0V DC
• Minimum Start Voltage: 10.0V DC
• Low Battery Alarm: 10.5VDC - 11.0VDC
• Low Battery Shutdown: 10.0VDC - 10.5VDC (Selectable via SW1)
• High Voltage Alarm: 16.0V DC
• Low Battery Voltage Restart: 13V DC
• Standard Idle Power Consumption: 45W
• Power Saver Mode Idle Consumption: 18W

AC Charger

• Charging Rate: 120A ±5A
• AC Input Range (Grid or Generator): 140V-270VAC / 184V-253VAC (Selectable via SW2)
• Overcharge Protection Shutdown at 15.7V
• Adjustable Charge Current from 0% to 100% Based on Battery Type
• 3-Stage Intelligent Battery Charger for Optimal Charging Efficiency

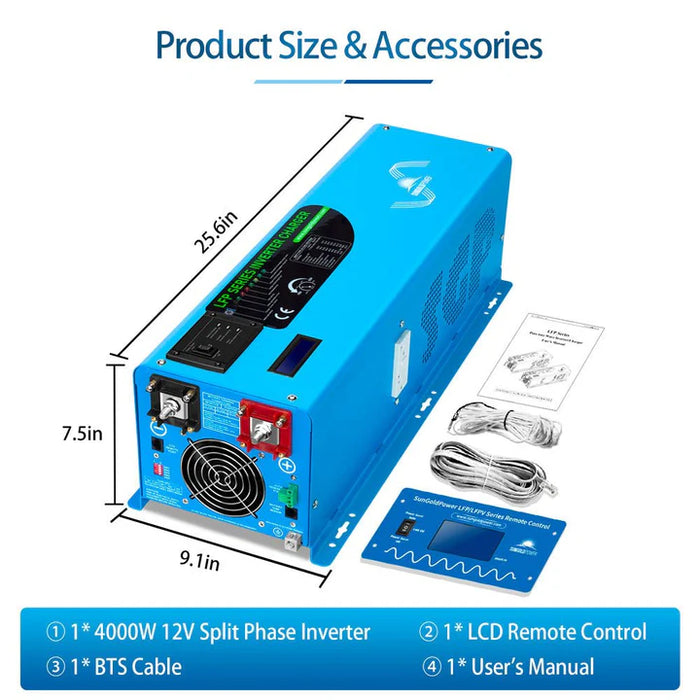

What's in the Box

4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger

• 4000W 12V Low-Frequency Pure Sine Wave Inverter
• User Manual (English)
• Remote Control for Convenient Operation
• Battery Temperature Sensor (BTS) Cable
• Unit Weight: 58.9 lbs
• Dimensions: 25.6 x 9.1 x 7.5 inches
• Shipping Weight: 67.9 lbs
• Shipping Box Dimensions: 30.3 x 13.4 x 12.8 inches

Downloads

4KW 12V Pure Sine Wave Split Inverter/Charger Data Sheet

User Manual
