Sungold Power - 10KW 48V Split Phase Solar Inverter

Name: Sungold Power - 10KW 48V Split Phase Solar Inverter
Brand: SunGold Power
SKU: SPH10K48SP
Price: 1980.00 USD
Availability: InStock

$1,980.00 - $1,980.00

$1,980.00

$1,980.00 - $1,980.00

$1,980.00

Quantity

SKU SPH10K48SP

Description

Sungold Power - 10KW 48V Split Phase Solar Inverter

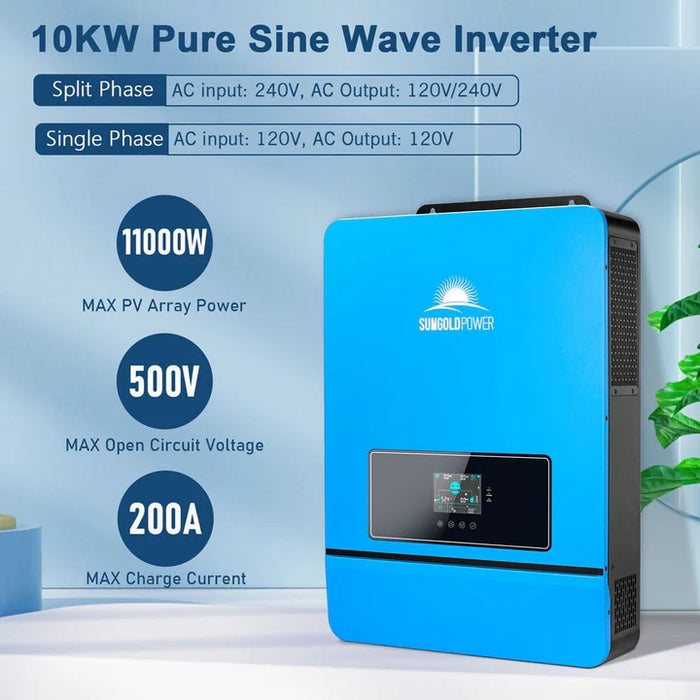

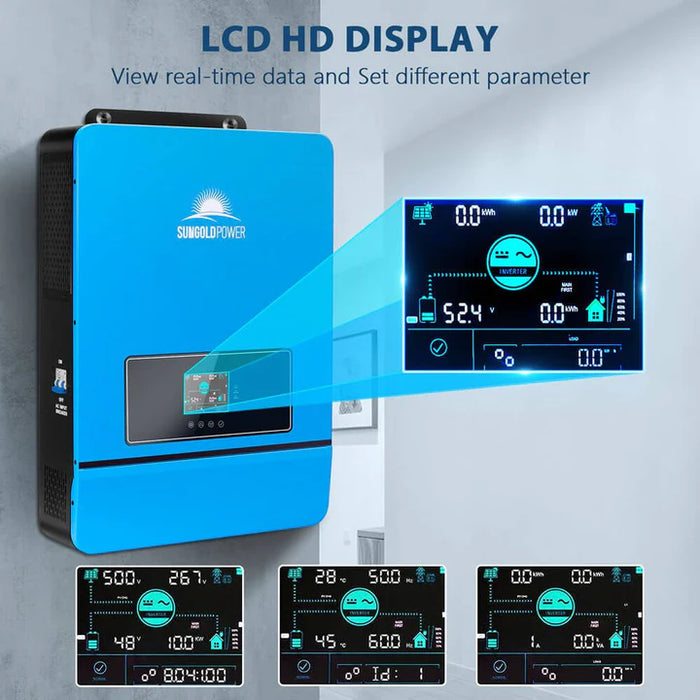

The all-in-one unit is a 10KW pure sine wave solar inverter that combines a maximum 200A battery charging capacity with two built-in MPPT solar controllers. It supports a maximum open circuit voltage of 500VDC and provides split-phase (120V/240V) or single-phase (120V) output. The included WiFi module enables users to monitor the inverter’s operating status and parameters via a mobile app. This inverter is UL 1741 certified by ETL for off-grid solar systems.

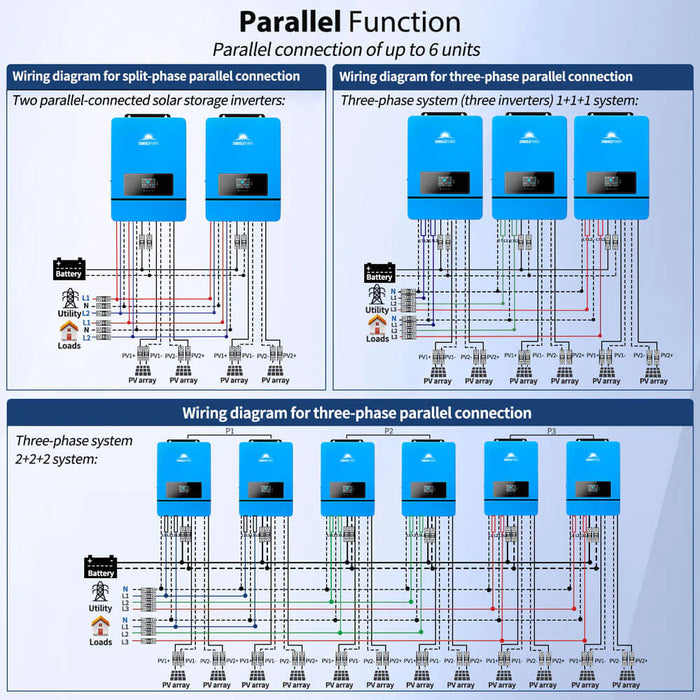

Parallel Kit: Supports parallel connection of up to six units, increasing power output to 60KW. This setup allows for 120V single-phase, 120V/240V split-phase, or 208V three-phase configurations (with more than three units in parallel), enhancing both inverter power and surge capacity.
Stable AC Output and Smart Protection: Rated at 10000W with a peak power of 20,000W, this inverter can handle motor loads up to 6HP. It includes multiple protection features such as PV input over-voltage/current protection, AC input over-voltage protection, battery over-voltage protection, and overload protection.

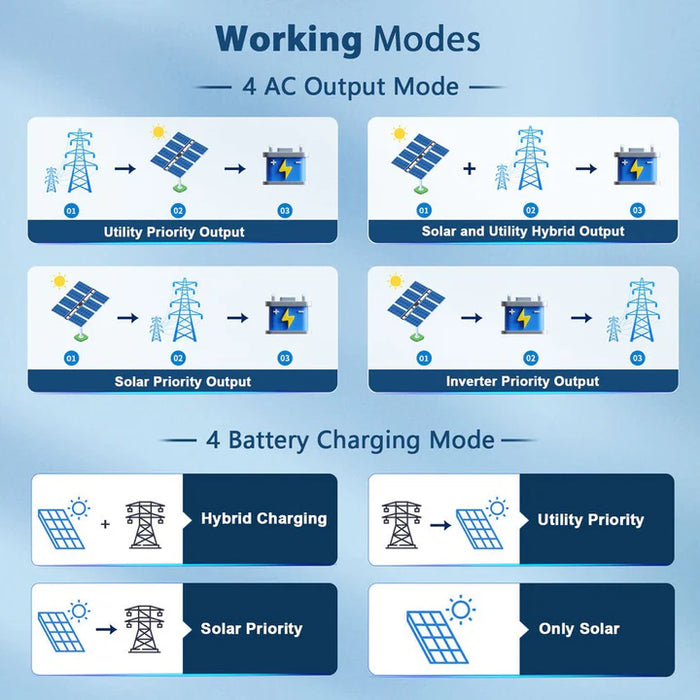

Multiple Charging and Output Modes: Offers four charging modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging. Additionally, it provides four output modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority, ensuring flexibility for different power needs.

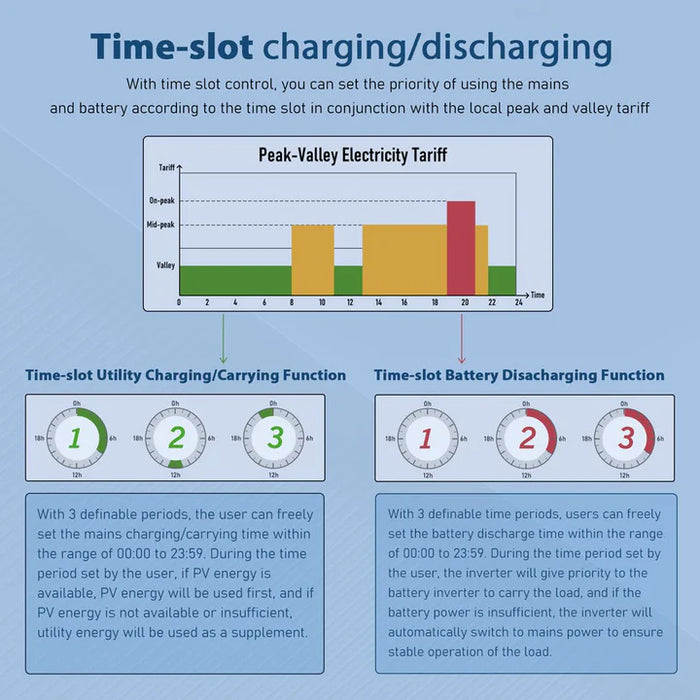

Time-Slot Charging/Discharging Function: The SPH series 10000W inverter includes a time-slot charging and discharging function, allowing users to schedule charging and discharging periods based on local peak and valley electricity tariffs. This ensures efficient energy management by optimizing the use of utility power and solar energy.

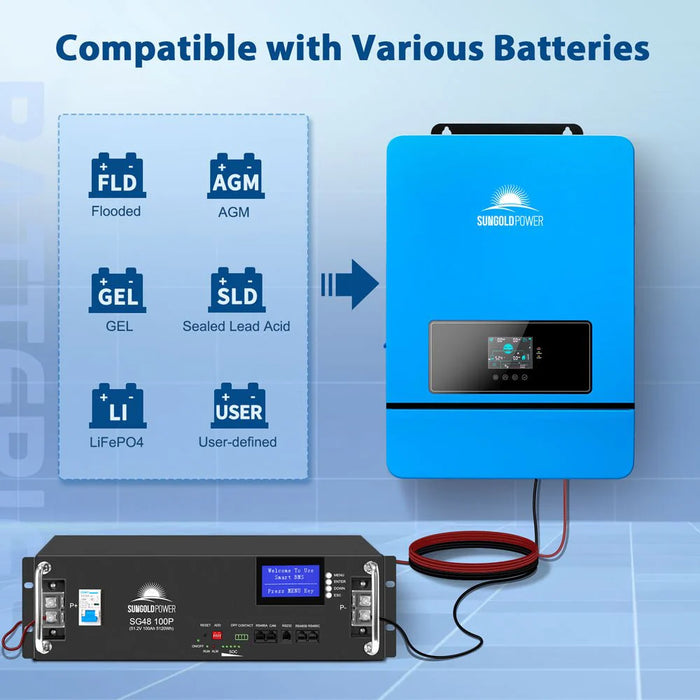

Battery Compatibility: Supports 48V AGM/sealed, gel, flooded, and lithium batteries, along with a user-configurable mode for compatibility with all battery types. It also supports battery-free operation. When a lithium battery is dormant, mains power and solar photovoltaics can activate the battery. The 48V split-phase inverter supports CAN and RS485 communication with SunGoldPower batteries.
