SKUEFSMARTHOMEPANEL3-32-US
Description
32 Independently Controlled Circuits • 200A Max Current • Supports Split-Phase 120/240V and 120/208V Grids
The Ultimate Whole-Home¹ Power Command Center

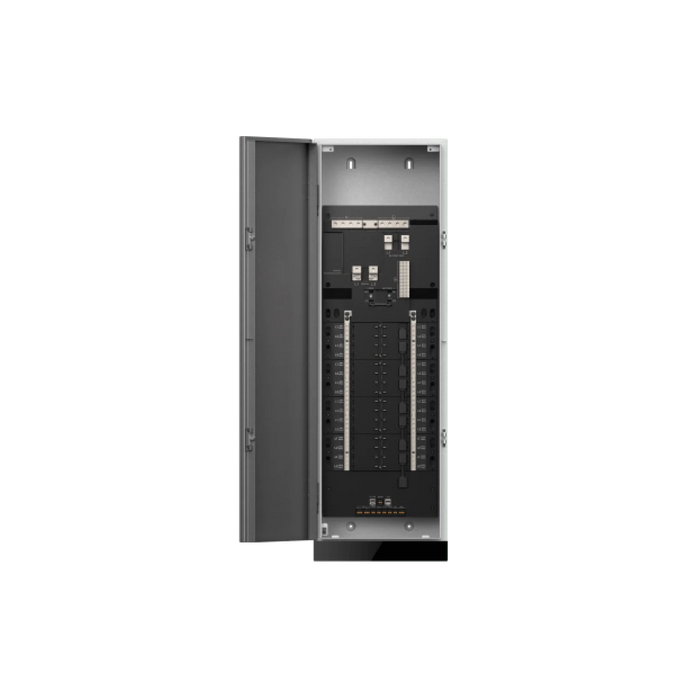

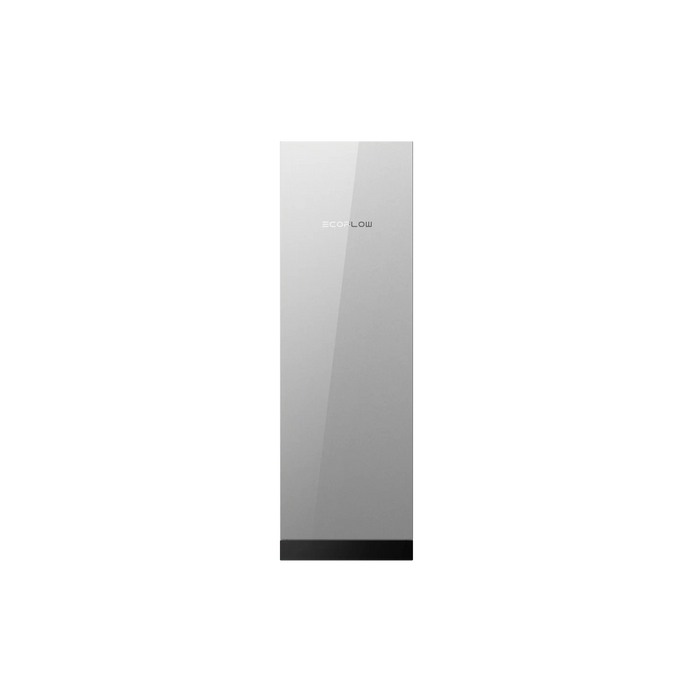

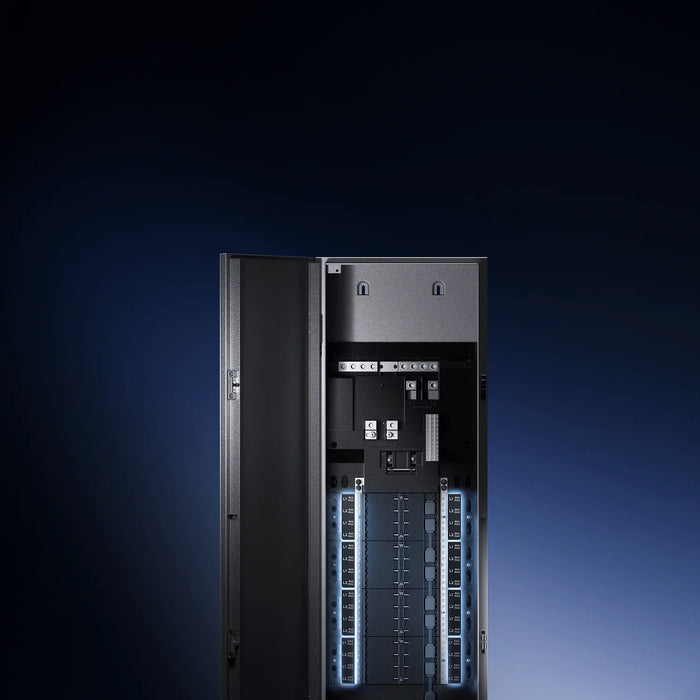

EcoFlow Smart Home Panel 3 is a smart electric panel with 32 independently controlled circuits. Fully compatible² with DELTA Pro Ultra X, generators, solar panels, and EV chargers, it delivers a seamless whole-home³ energy experience—with instant, automatic backup during outages.
When Blackout Hits: Lights Stay On
Smart Control, Always Reliable Regardless of Weather
Backup for Your Backup
20 ms Auto Switchover Time Smart Home Panel 3 switches from grid to battery in under 20 ms—faster than a blink—so your whole home keeps running without interruption.
Turn Sunlight Into Savings, No Watt Wasted
Pair Smart Home Panel 3 with DELTA Pro Ultra X for true self-power. Once the battery reaches your set reserve, surplus solar flows directly to home appliances—free solar first, cheaper power all day, backup ready at night.
Based on TOU peak/off-peak rates, solar forecasts your energy habits, AI TOU manages battery charging and discharging for the lowest-cost power. Before a rainy day, it fills the battery with free solar or cheap off-peak power, letting you bypass peak rates automatically.
The Fastest Installation⁶
7 Days, 3 Steps
After your order, we’ll match you with an EcoFlow Authorized Installer. Nationwide coverage—from sunny California to snowy Maine.

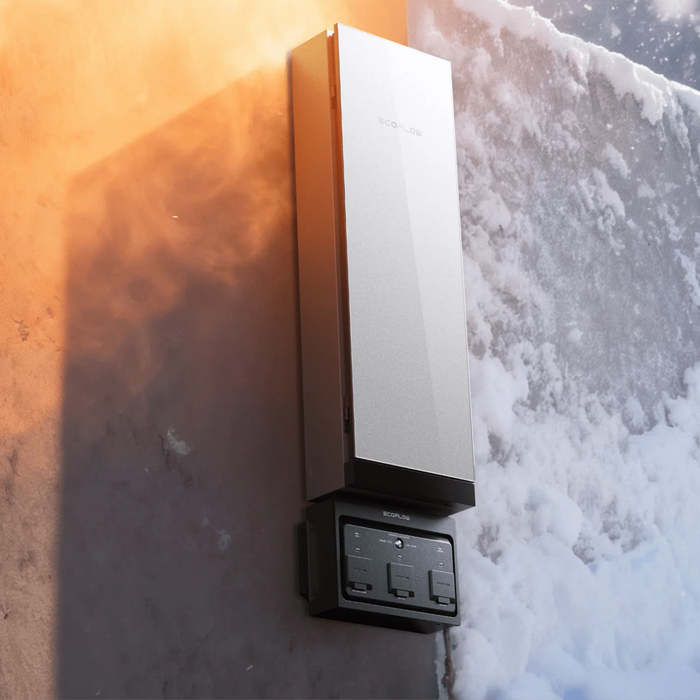

Resilient in Extremes, Reliable for a Decade
–30℃ to 50℃ Operation⁵
Whether in extreme heat or freezing winters, Smart Home Panel 3 safeguards your power security.

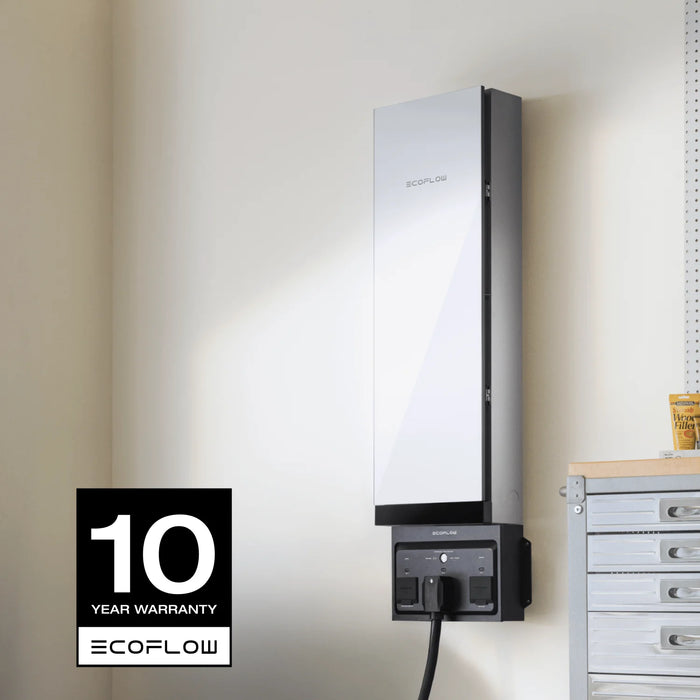

10 Years
Enjoy complete confidence with a 10-year warranty.
Split design, Hassle-Free Install
What's in the Box
Specifications
Net Weight
88.8±0.4lb(40.3±0.2kg)
Dimensions (HWD)
365*188*1150mm(14.37*7.40*45.28in.)
Number of load branches
32
Overvoltage Category
IV
Rated Input Voltage (V)
120/240V, 120/208V, 60Hz
Maximum Continuous Input Current (A)
160A
Enclosure Protection
NEMA 3R
Operating Temperature Range
-30~50℃ (-22~122℉)
Storage Temperature Range
-30~50℃ (-22~122℉)
Maximum Operating Altitude
≤3000m (9842.52ft)
Branch Circuit Rated Current
90A*8 circuits output 60A*24 circuits output
Noise Emission
≤40dB
Certificates
UL67, UL869A, UL916, UL1741
Warranty
10 years
Communication Method
Bluetooth/Wi-Fi/Ethernet/CAN/RS485
EMC
FCC Part 15B
FCC Part 15C
Main circuit power detection accuracy
0.5%
Sub circuit power detection accuracy
1%
Ecologically compatible products
EcoFlow DELTA Pro Ultra Inverter/EcoFlow DELTA Pro Ultra X Inverter/PowerPulse EV Charger
Warranty
Warranty Policy – King of Generators
At King of Generators, we are committed to ensuring you have a seamless experience with your purchase. Below is an overview of the EcoFlow warranty policy to help you understand coverage and how to make a warranty claim through King of Generators support.
Warranty Period Overview
EcoFlow provides a limited warranty on its products, starting from the date of purchase. The warranty period varies by product type:
DELTA Series & RIVER Series: 1–5 years (depending on model)
Solar Panels: 12 months to 10 years
Accessories: 12 months
Smart Generators: 1–3 years
For detailed coverage, refer to the product-specific warranty on EcoFlow’s official website or contact King of Generators support.
What’s Covered?
Free repairs or replacements for defects in materials or workmanship
Warranty extensions available for select products upon registration on EcoFlow’s website
What’s Not Covered?
The warranty does not cover:
Damage due to misuse, unauthorized modifications, or external factors (e.g., water, weather)
Products purchased from unauthorized sellers or without valid proof of purchase
Products used outside the intended region or incompatible with local power standards
Note: EcoFlow products are designed for use in the U.S. Warranty claims for malfunctions due to use outside the country may not be covered.
How to Make a Warranty Claim
If you experience any issues, please contact King of Generators support to initiate a warranty claim.
Our team will assist you with the claim process, including verifying your purchase, troubleshooting the issue, and coordinating with EcoFlow for repair or replacement.
Once approved, we will provide further instructions, including shipping details and estimated resolution time.
