BigBattery - 48V ETHOS 10.2KWH (2 Module), Stackable Power Storage

Name: BigBattery - 48V ETHOS 10.2KWH (2 Module), Stackable Power Storage
Brand: King of Generators
SKU: K0949
Price: 4490.00 USD
Availability: InStock

Sale

$5,160.00

$5,160.00 - $5,160.00

$5,160.00

$4,490.00

$4,490.00 - $4,490.00

$4,490.00

Quantity

SKU K0949

Description

BigBattery’s 48V ETHOS is transforming home energy solutions.

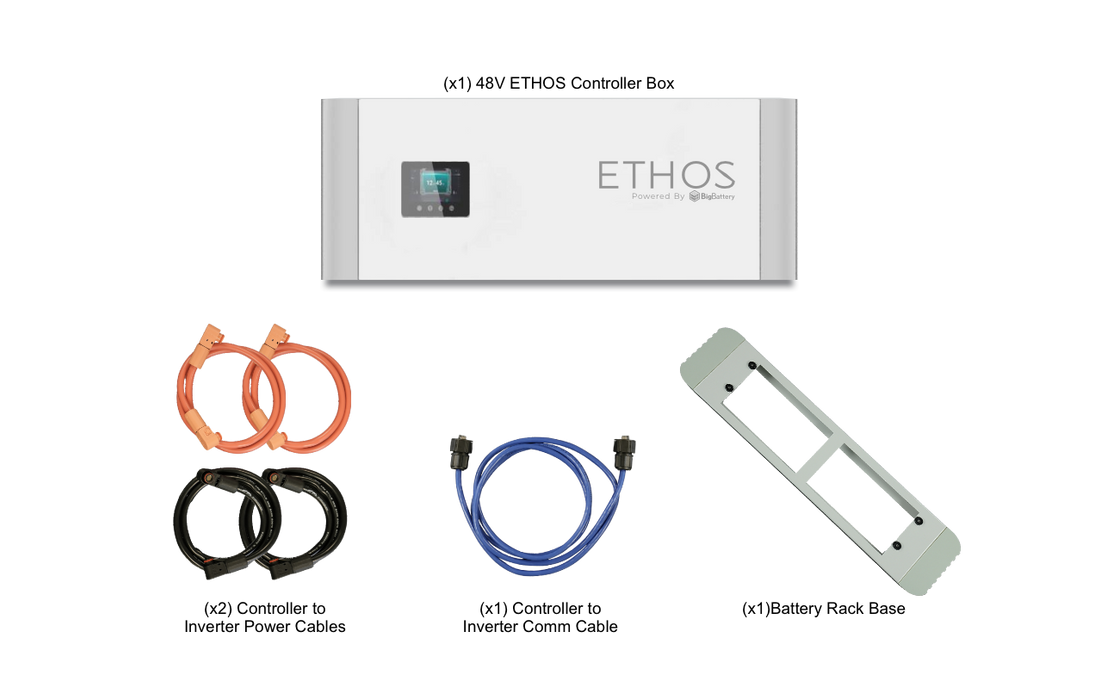

The newly launched ETHOS battery system offers a fully modular and stackable design, complete with a dedicated control box, an advanced LED status display, and an integrated mounting setup for easy installation.

Whether you're securing emergency backup power for your cabin or tiny home, or upgrading your residential property with a reliable solar battery storage system, the ETHOS delivers dependable and efficient energy year-round. With a cutting-edge battery management system (BMS) that includes automatic cell balancing, an IP65-rated enclosure, and built-in fire suppression, the ETHOS is built for lasting safety and resilience in all environments.

Stay informed on your system's performance with the interactive LED interface, along with CANBus and RS485 communication options for real-time power monitoring. The ETHOS is engineered for both reliability and user-friendly diagnostics, making it ideal for off-grid power setups and whole-home energy storage.

The ETHOS is available in two scalable configurations—2-stack (10.24 kWh) and 3-stack (15.36 kWh)—with future expandability to meet growing energy demands. Upgrade your home energy system with the powerful, efficient 48V ETHOS battery—now available.

Designed For 48V Applications

RESIDENTIAL POWER SYSTEMS
HOME SOLAR SYSTEMS
CABINS & TINY HOMES
FAMILY HOMES & MANSIONS
OFF-GRID HOMESTEADS
EMERGENCY POWER
WHOLE HOME BACKUP
LEAD ACID REPLACEMENT

Specifications:

Battery Voltage: 48V
Configurations Available: 2-stack (10.24 kWh) / 3-stack (15.36 kWh)
Design: Modular, stackable
BMS: Advanced with auto cell balancing
Display: Full-featured LED display
Enclosure: IP65-rated
Fire Protection: Integrated fire suppression system
Communication: CANBus / RS485
Mounting System: Included
Expansion: System expandable for future scalability

Tech Specs

System Voltage:	48V
Nominal Voltage:	51.2V
Chemistry:	LiFePO4
kWh Capacity:	10.24kWh
Ah Capacity:	200Ah
Charging Voltage Range:	55.6 - 57V
Max Charge Voltage:	57V
Operating Voltage Range:	48 – 57V
Suggested Low Voltage Cutoff:	48 – 50.8V
Cell Configuration:	16S 2P
Max Continuous Discharge Current:	200A
Max Continuous Power:	10240W
Max Discharge Peak Current:	300A (Max 5 seconds)
Max Charge Current:	200A
Charge Temperature Range:	32°F - 113°F (0°C - 45°C)
Discharge Temperature Range:	-4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature Range:	59°F - 95°F (15°C - 35°C)
Storage Temperature Range (SoC >50%):	-4°F - 113°F (-20°C - 45°C) (Max 6 months)
Weight:	273 lb (123.8 kg)
Depth:	6.7 in (170 mm)
Width:	26.5 in (674 mm)
Height:	43.3 in (1100 mm)
Max Connections:	Up to 16 parallel connections per control box
Protection Rating:	IP65 / NEMA 4X
Communications:	CANBus / RS485
Certifications:	UL9540A, UL1973, & UN38.3
