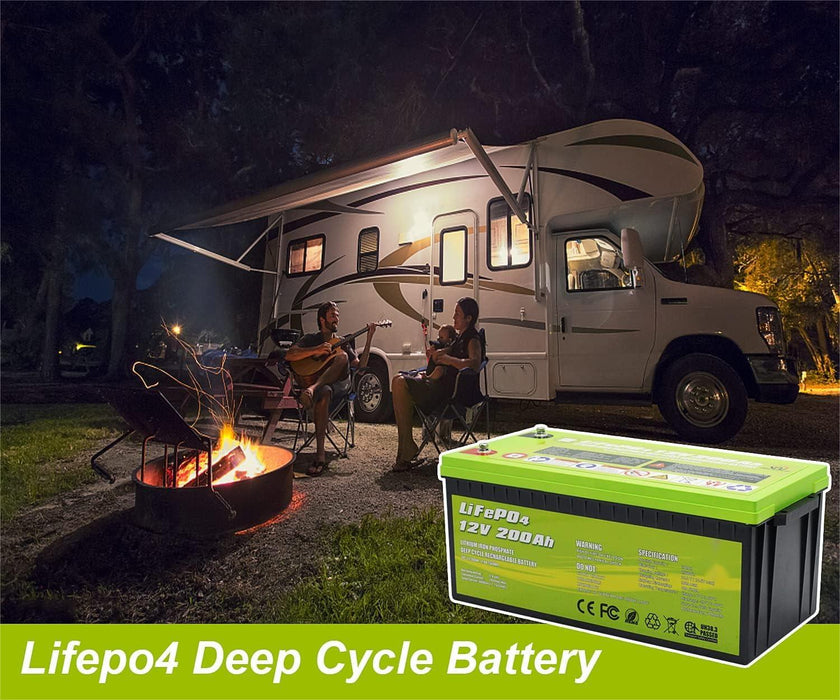

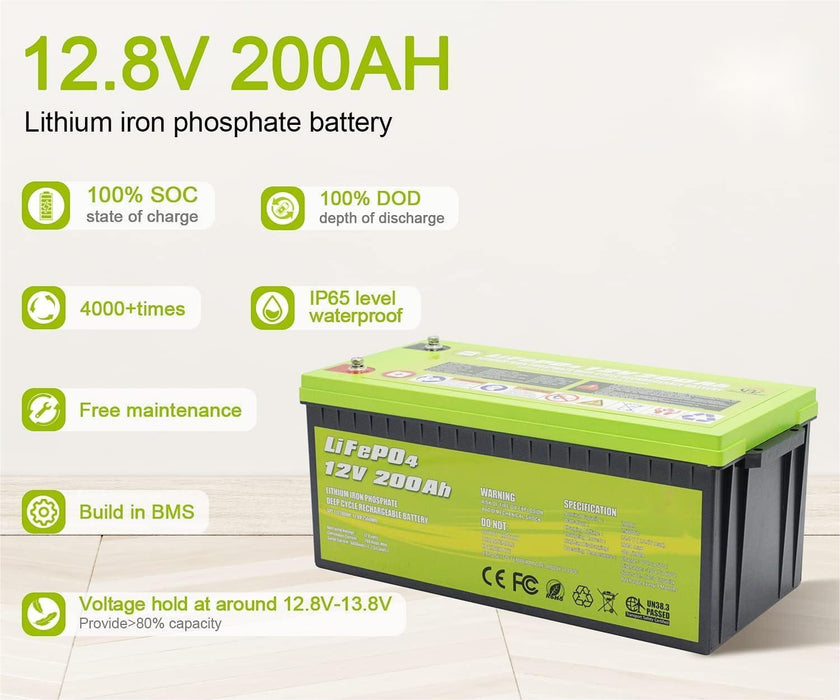

200Ah LiFePO4 Deep Cycle Battery – High-Performance Lithium Iron Phosphate Power Solution
Superior Performance & Efficiency
The 200Ah LiFePO4 battery is an advanced replacement for traditional lead-acid batteries, offering higher energy density, enhanced stability, and a longer lifespan. Designed for both residential and off-grid applications, it provides efficient power output and reliable deep-cycle performance, making it ideal for solar energy storage, RVs, marine applications, golf carts, and backup power systems.
Key Features
High-Efficiency Lithium Iron Phosphate Technology
-
Lead-Acid Replacement – LiFePO4 batteries deliver greater stability and energy efficiency compared to traditional lead-acid options.
-
High Temperature Performance – Operates efficiently in extreme temperatures while maintaining high power output.
-
Deep Discharge Capability – Provides 96-99% discharge efficiency, significantly outperforming lead-acid batteries that only discharge 40-50%.
Long-Lasting Deep Cycle Battery
-
Extended Lifespan – Over 4,000 charge cycles while maintaining 80% capacity, compared to only 300-500 cycles for lead-acid batteries.
-
Enhanced Durability – Designed to last four times longer than traditional battery alternatives.
Built-In Smart Battery Management System (BMS)
-
Advanced Protection – Prevents overcharging, over-discharging, over-current, short circuits, and overheating.
-
Cell Balancing & Safety Monitoring – Includes low and high voltage cutoffs, temperature protection, and reverse polarity safeguards.
-
Low Temperature Heating Function – Ensures optimal charging performance in cold weather conditions.
Lightweight & Versatile Design
-
Compact & Lightweight – Weighs only 23.8 lbs, making it 1/3 the weight of a comparable lead-acid battery.
-
Wide Range of Applications – Perfect for solar energy systems, RVs, marine use, UPS backup power, golf carts, fish finders, off-grid setups, and outdoor activities.
Scalability & Flexible Installation
-
Parallel & Series Configuration – Supports up to 4 batteries in parallel (4P) or 4 in series (4S) to increase capacity and voltage.
-
Expandable Power – Achieve a maximum capacity of 400Ah and higher voltage outputs of 24V, 36V, or 48V.
-
Multiple Configuration Options – Various setups, including 2S2P, 3S2P, 4S2P, to meet different power requirements.
Specifications
Physical Dimensions & Weight
-
Length: 20.5 inches
-
Width: 9.4 inches
-
Height: 8.5 inches
-
Weight: 48.9 lbs
Electrical Performance
-
Connection Method: Parallel/Series
-
Nominal Capacity: 200Ah
-
Continuous Current: 200 Amps Max
-
Watt-Hour Rating: 2560Wh
-
Charge Voltage: 14.4V (Max 14.6V)
-
Charge Current: 100A Max
-
Standard/Max Discharging Current: 40A / 200A
-
Discharge Efficiency: 96-99% @ 0.5C
Operating Temperature Range
-
Charging: 0°C ~ 50°C (32°F ~ 122°F)
-
Discharging: -20°C ~ 60°C (-4°F ~ 140°F)
-
Storage: Maintain at ≥ 50% capacity for optimal lifespan
Warranty
Warranty Policy
Limited Warranty King of Generators warrants to the original consumer purchaser that Acopower products will be free from defects in workmanship and material under normal consumer use during the applicable warranty period. This warranty covers defects in materials and workmanship but does not cover misuse, abuse, modifications, or accidental damage.
Warranty Period
-
Generators: Covered under a 1-year limited warranty.
-
Solar Panels: Covered under a 5-year limited warranty.
-
Other Products: Warranty coverage varies; please refer to product specifications.
The warranty period begins from the original date of purchase. Proof of purchase, such as a sales receipt, is required to establish the warranty period.
Warranty Service If a product fails due to defects in materials or workmanship during the warranty period, we will replace or repair the item at our discretion. Replacement products assume the remaining warranty of the original product.
Exclusions This warranty does not cover:
- Damage caused by misuse, abuse, modifications, or accidents.
- Repairs attempted by unauthorized personnel.
- Products purchased from unauthorized sellers.
- Battery cells unless charged within seven (7) days of purchase and at least once every six (6) months thereafter.
How to Obtain Warranty Service To request warranty service, please contact King of Generators Support at info@kinggenerators.com with the following details:
- Proof of purchase
- Product details and issue description
- Photos or videos (if applicable)
We will assess the claim and provide further instructions on the warranty process.
For additional inquiries, please reach out to info@kinggenerators.com.
