Description:

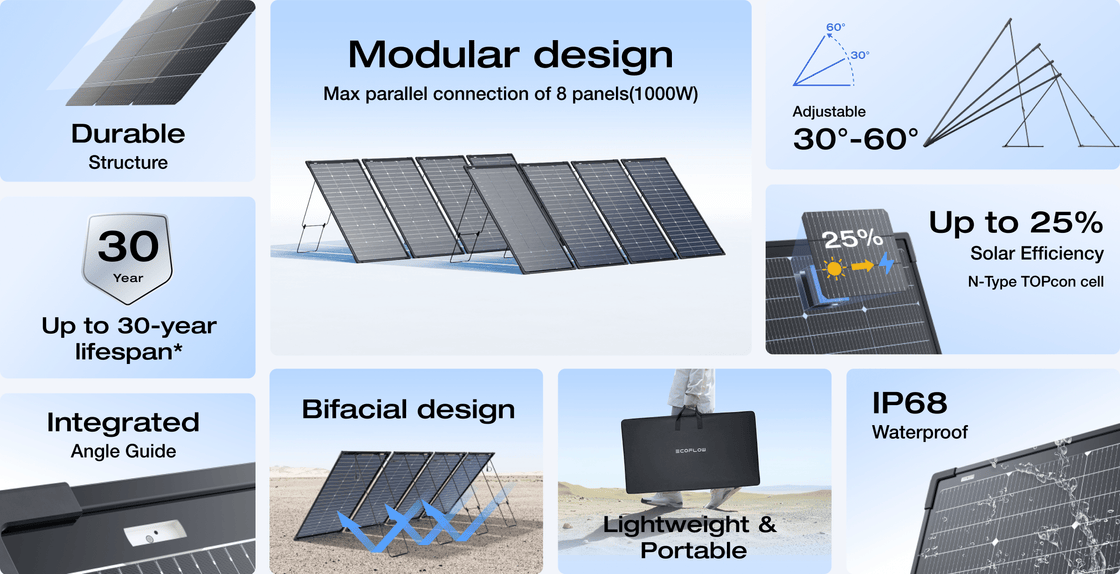

Modular, Expandable Solar Power
This modular 125W solar panel supports up to 8 panels connected in parallel (1000W max), giving you flexibility to scale your power setup. Its 30°–60° adjustable angle helps maximize solar capture throughout the day.

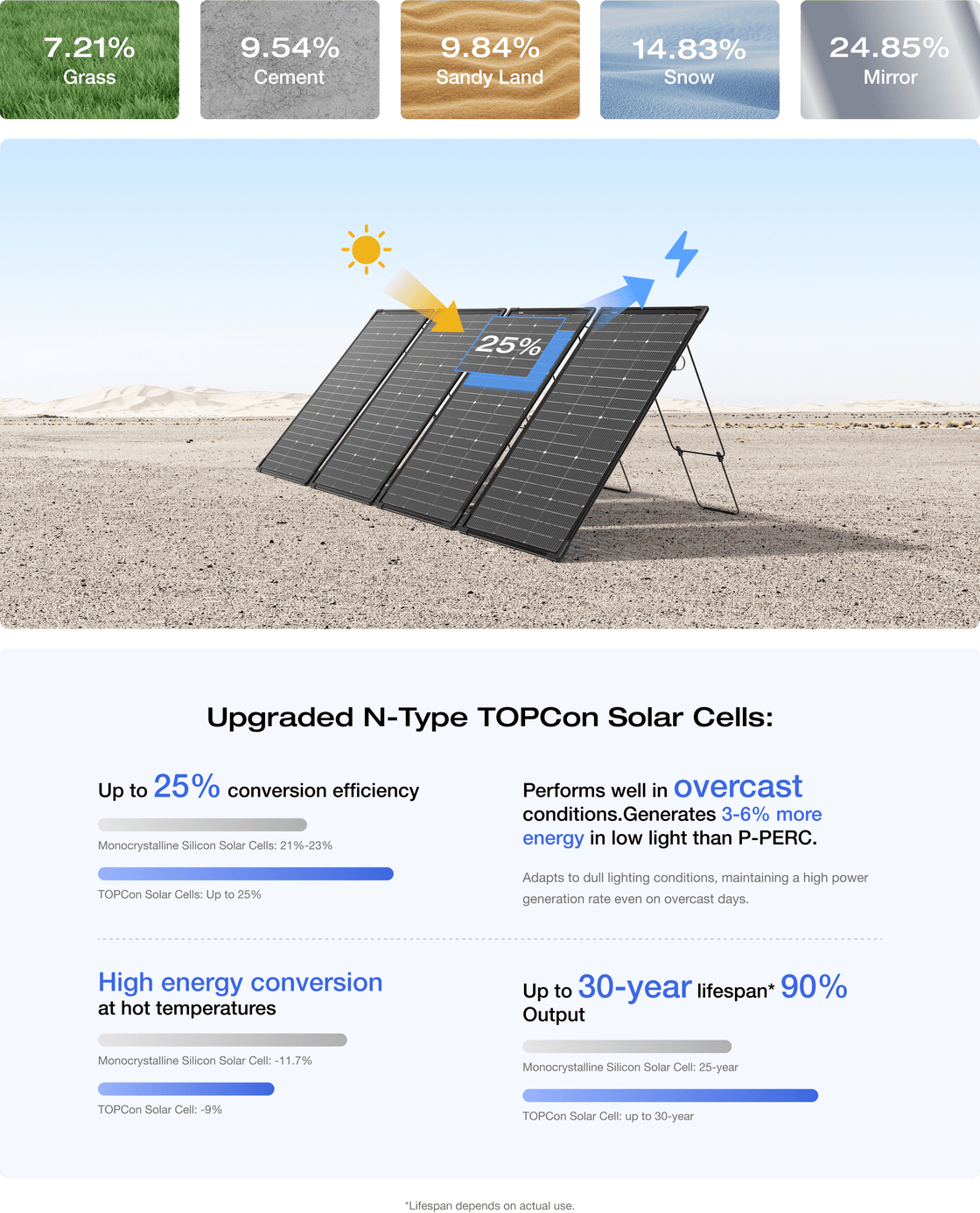

High Efficiency in Real-World Conditions
Built with advanced TOPCon monocrystalline cells, the panel maintains strong performance in low light and high-temperature environments. It delivers up to 25% conversion efficiency, producing 125W (STC) and up to 138W (BNPI) with its bifacial design.

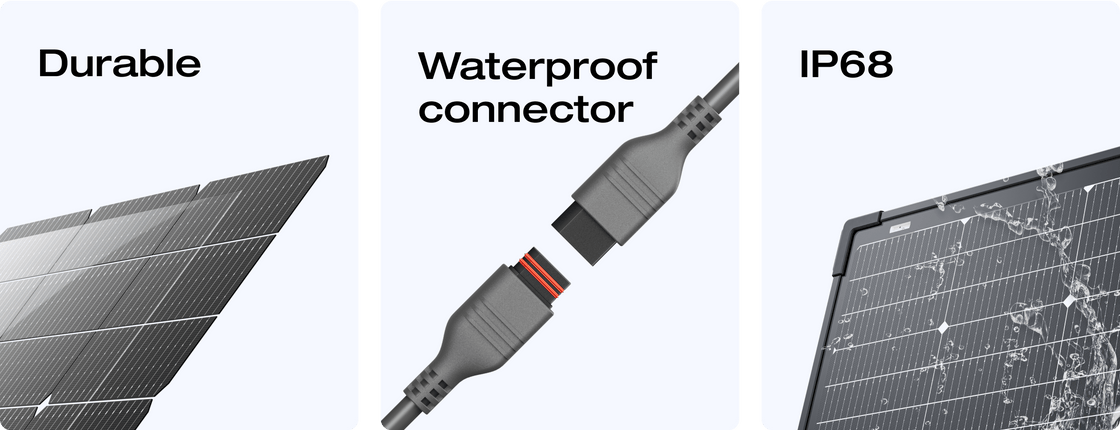

Durable, Weather-Ready Construction
Designed for long-term reliability, the panel carries an IP68 waterproof rating and uses durable materials including:
-
Anti-corrosive aluminum framing
-
1.1mm tempered glass for high light transmission
-
POE film for enhanced UV and moisture resistance
-
PET backsheet for structural stability
-
Waterproof XT60-W connectors
This ensures dependable outdoor performance across seasons.

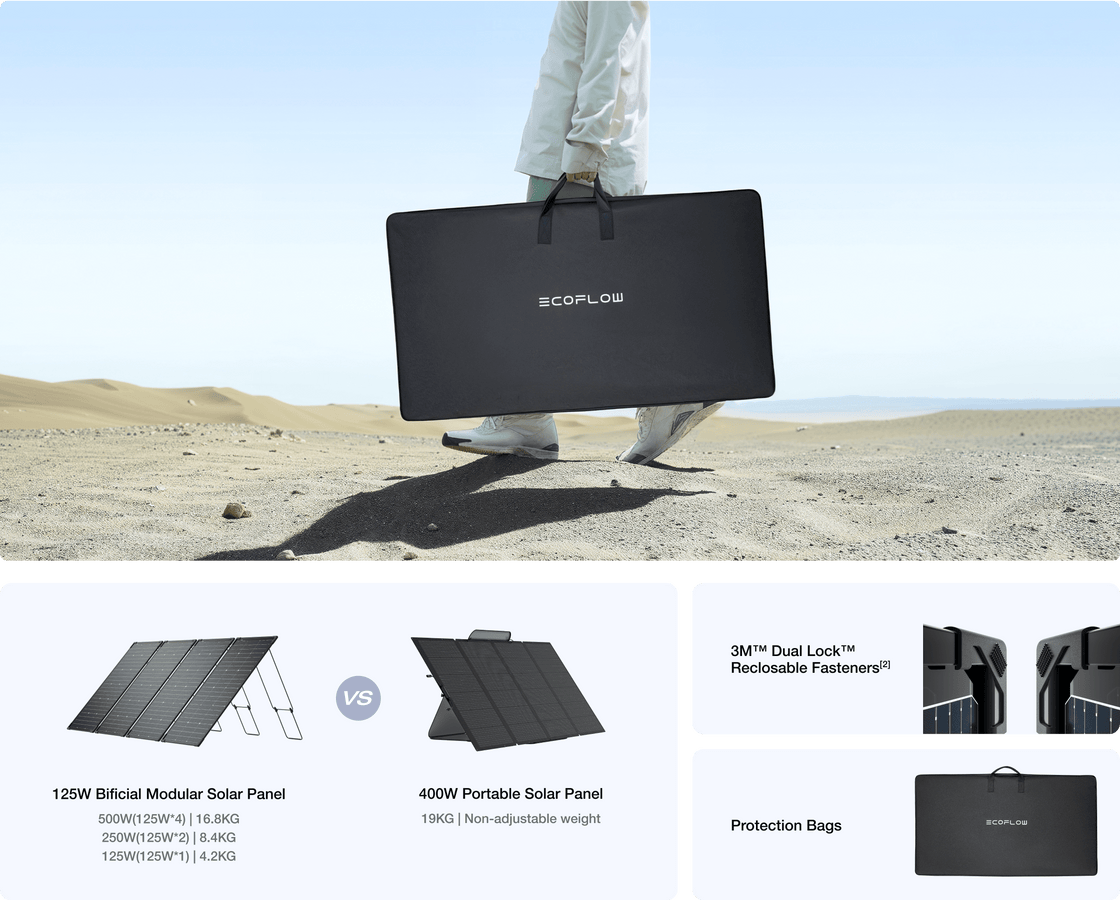

Lightweight and Easy to Handle
A 4-panel setup weighs just 35.2 lb (16.2 kg), making transport and installation straightforward. The modular layout allows you to split the system into individual panels whenever a lighter or smaller configuration is needed.
Flexible Use Cases
Perfect for home installations, backyard setups, RV systems, and portable solar power needs. With an expected 30-year lifespan and up to 5 years of warranty, it offers a long-term, low-maintenance solution.

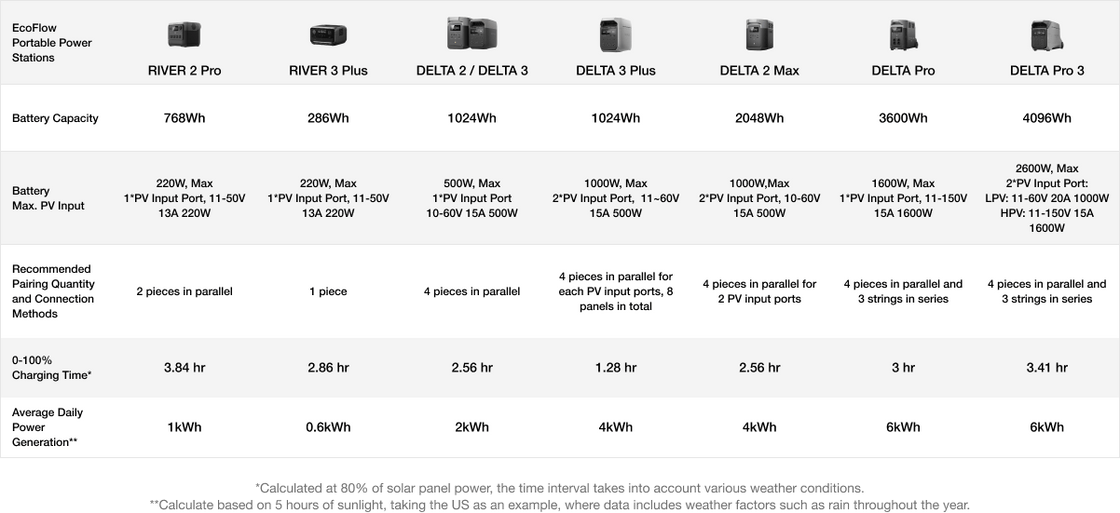

Simple Integration With Power Systems
The included MC4-compatible photovoltaic connector allows easy connection to third-party systems, while the XT60 interface provides a secure, touch-safe, and waterproof link to portable power stations.
Specifications:
Rated Power
- STC: 125W (±3W)
- BNPI: 138W (±3W)
|
Open Circuit Voltage
|
Short Circuit Current
|
Optimal Operating Voltage
|
Optimal Operating Current
|
Recommended Ambient Temperature
- -40°C to 85°C (-24°F to 185°F)
|
Efficiency
|
Bifaciality Coefficient
|
Weight
- Approx. 4.2 kg (9.26 lbs)
|
Dimensions (L × W × H)
- 612 × 1154 × 22 mm
- (24.1 × 45.4 × 0.87 in)
|
Maximum System Voltage
|
Cell Type
- TOPCon monocrystalline silicon
|
Connector Type
|
Water & Dust Protection
- Solar Panel: IP68
- XT60 Connector: IP68
|
Warranty
|
Lifespan
|
What‘s In The Box
