Sungold Power 10kW Off-Grid Solar Kit (120/240V) – 12×550W Panels + Battery Options (Standard, Heated, 200Ah, Outdoor)

Description

Sungold Power 10kW Off-Grid Solar Kit (120/240V Split-Phase, 48V)

6,600W Solar Array + Choose Your Battery Option (4 Variants)

This Sungold Power 10kW off-grid solar kit is built for customers who want real household power—without relying on the grid. It includes a 10,000W pure sine wave inverter, a high-output 6.6kW solar array, and four battery options so you can choose the best fit for your climate, install location, and runtime goals.

Perfect for cabins, workshops, rural homes, and backup power systems where reliability matters.

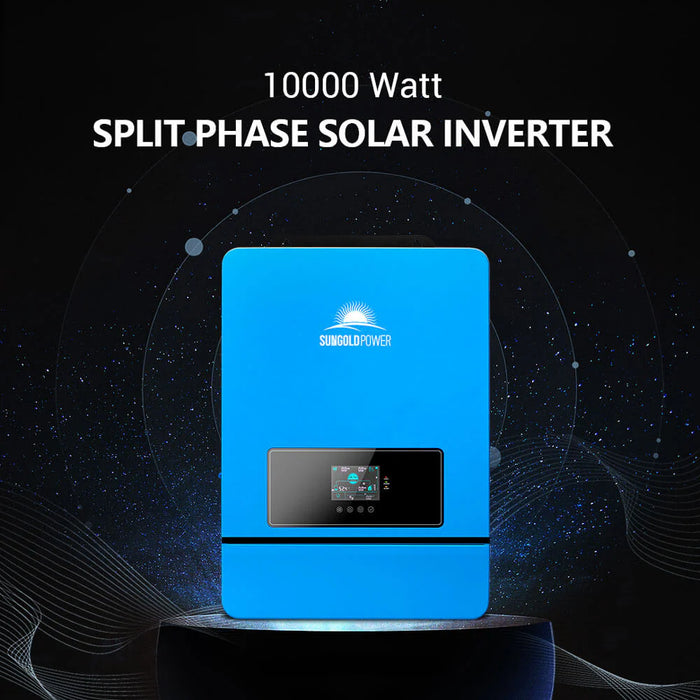

Serious 120/240V Power (10,000W Pure Sine Wave)

At the core of this kit is a 10,000W 48V split-phase inverter providing 120/240V output with clean, stable pure sine wave power—safe for sensitive electronics and strong enough for high-demand loads.

Key inverter specs (highlights):

• AC Output: 10,000W

• Output waveform: Pure Sine Wave

• Output voltage: 120/240V (split-phase/single-phase)

• MPPT operating range: 125VDC–425VDC

• Max charging current: 200A

• Max PV array power: 11,000W

• Efficiency: 92%

• Warranty: 3 years

• Certification: UL1741 listed (ETL)

Expandable: Parallel capability supports expansion up to 6 units if you ever scale up.

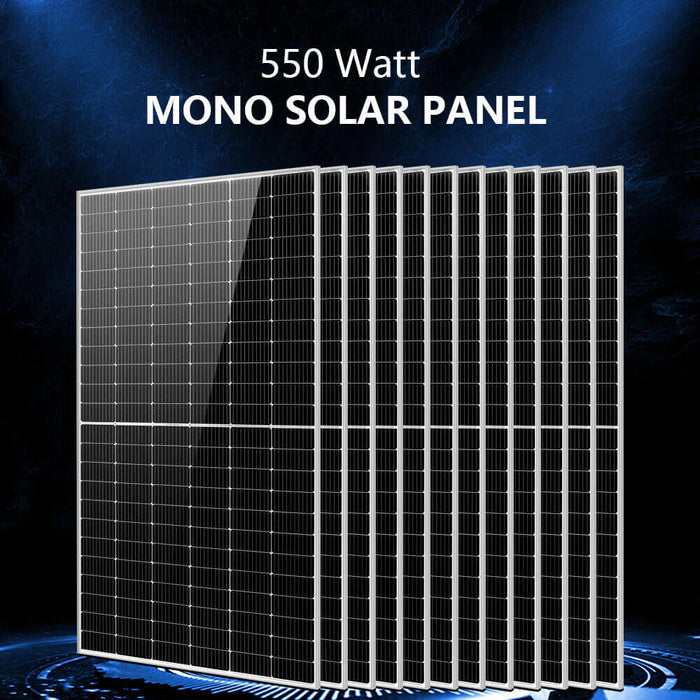

High-Output Solar Array (12 × 550W Panels = 6,600W)

Included are 12 × 550W monocrystalline panels (6,600W total) to maximize daily production and recharge your batteries faster—especially helpful for off-grid living and heavy daily usage.

Panel specs (highlights):

• Peak power: 550W

• Cell type: Monocrystalline

• Tolerance: ±3%

• Max power voltage (Vmp): 41.96V

• Max power current (Imp): 13.11A

• Open circuit voltage (Voc): 49.9V

• Short circuit current (Isc): 14.01A

• Panel size: 89.8" × 44.9" × 1.4"

• Weight: 56.9 lb each

• Warranty: 25 years

• Certifications: UL61730 / IEC / TUV (as listed)

Best For

• Off-grid homes and cabins

• Workshop + tools + equipment

• Home backup power systems (critical loads)

• Customers who want 120/240V split-phase power with upgrade paths

Choose Your Battery Option

Option 1 — SG48100P Rack Battery (51.2V 100Ah)

Best value for indoor installs and moderate climates.

Highlights:

• 51.2V, 100Ah (5.12kWh each)

• Long cycle life rating (≥7000 listed)

• Communication support: RS232/RS485/CAN

• 10-year warranty (as listed)

Option 2 — SGH48100T Self-Heating Rack Battery (51.2V 100Ah)

Best choice for cold climates or unheated installs (garage/shed/cabin).

Highlights:

• 51.2V, 100Ah (5.12kWh each)

• Self-heating feature for cold-weather charging support

• Communication: RS485/CAN

• 10-year warranty (as listed)

Option 3 — SG48200T LiFePO₄ Battery (51.2V 200Ah)

Higher capacity for customers wanting longer runtime and fewer cycles.

Highlights:

• 51.2V, 200Ah (10.24kWh each)

• Strong option for overnight loads + longer backup time

Option 4 — PowerMax 314 Outdoor Battery (51.2V 314Ah)

Largest capacity and a rugged outdoor-rated storage option.

Highlights:

• 51.2V, 314Ah (high-capacity storage)

• Great for outdoor installs or customers wanting maximum runtime

Need Help Picking the Right Battery Option?

Tell us where the batteries will be installed (indoor / garage / outdoor) and what you want to run—then we’ll recommend the best variant before you order.

Specifications

What's in the Box

Downloads

User Manual:

• 10000W Solar Inverter
• 550 Watts Solar Panels
• SG48100P LifePo4 5.12KWH Lithium Battery
• SGH48100T LifePo4 5.12KWH Lithium Battery
• SG48200T LifePo4 10.24KWH Lithium Battery

• PowerMax 51.2V 314AH Outdoor Energy Storage Battery

Wiring Diagram:

• The wiring diagram of SGR-10K25S-240V
• The wiring diagram of SGR-10K25T
