Nature's Generator Powerhouse Power Addition

Description

Nature's Generator Powerhouse Power Add-On Bundle

Expand your Nature's Generator Powerhouse system with this power add-on bundle, featuring an additional Powerhouse Power Pod and two high-efficiency Powerhouse Power Panels. This upgrade increases battery capacity and enhances solar energy collection for a more powerful and sustainable off-grid system.

Key Features

• Increased Battery Capacity – Adds an extra 4800Wh to your Powerhouse system, extending power availability.
• Enhanced Solar & Wind Input – Supports 2000W of solar charging and 1000W of wind charging for maximum renewable energy absorption.
• High-Efficiency 410W Solar Panels – Features Mono PERC solar cells for optimized energy conversion.
• Simple Expansion – Easily connects via plug-and-play design, requiring no professional installation.

Expandable Home Power Eco-System

Nature’s Generator provides a modular power system, allowing you to customize and expand with additional solar panels, wind turbines, power pods, transfer switches, and security camera systems.

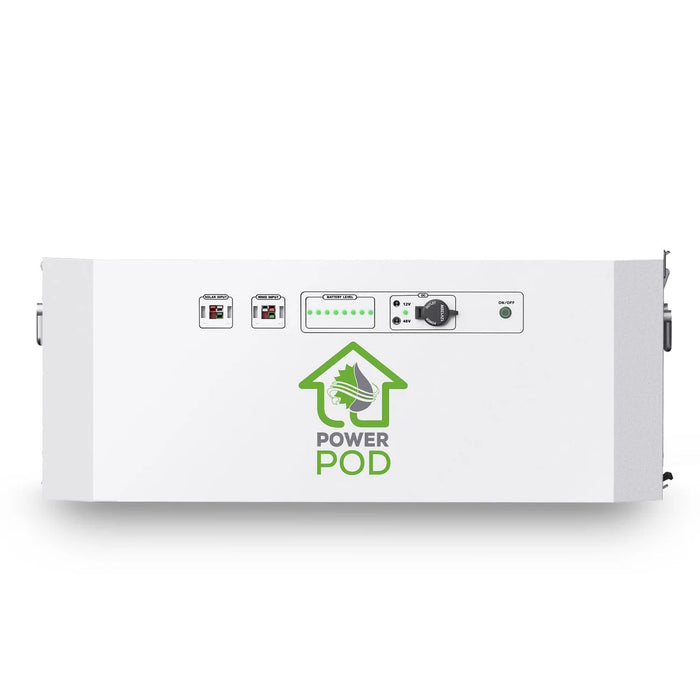

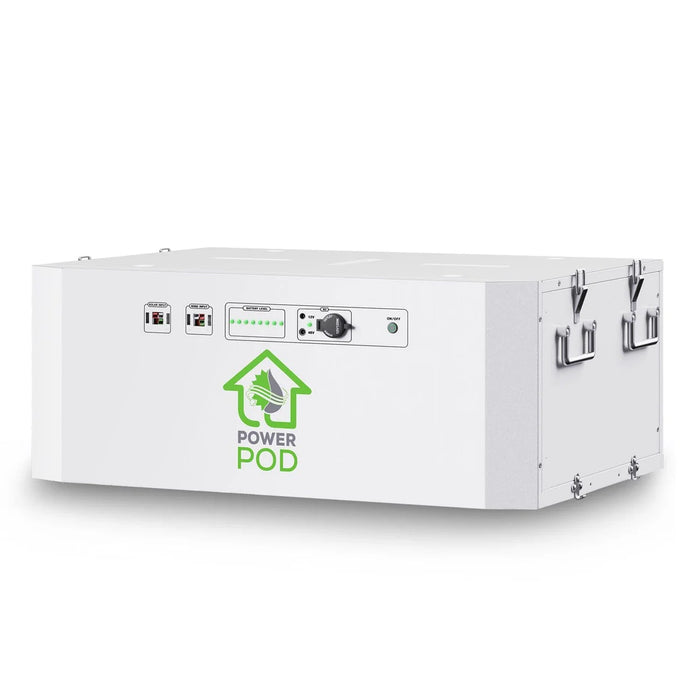

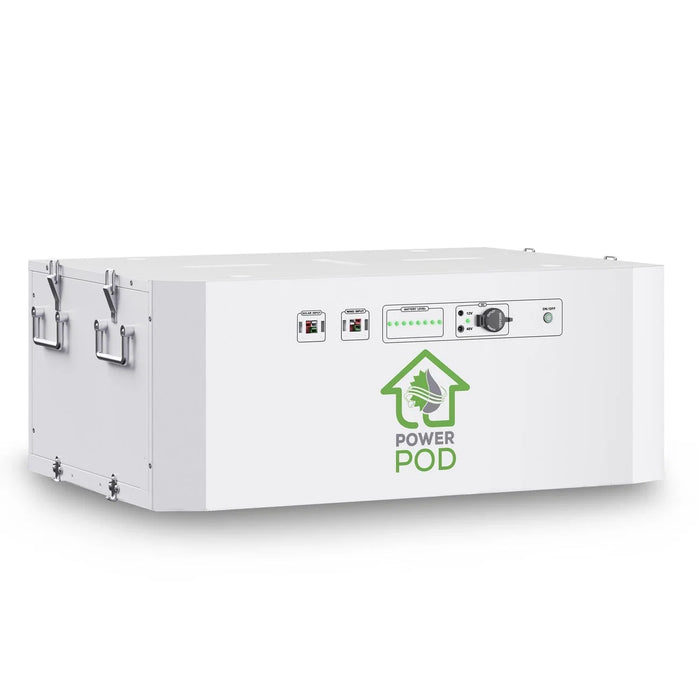

Powerhouse Power Pod

The Powerhouse Power Pod expands both battery storage and renewable energy input for greater power efficiency.

Unmatched Expandability

4800Wh battery capacity extension, with no limit on additional power pods.

Optimized Renewable Energy Intake

Upgrades solar input by 2000W and wind input by 1000W for increased efficiency.

Effortless Plug & Play Installation

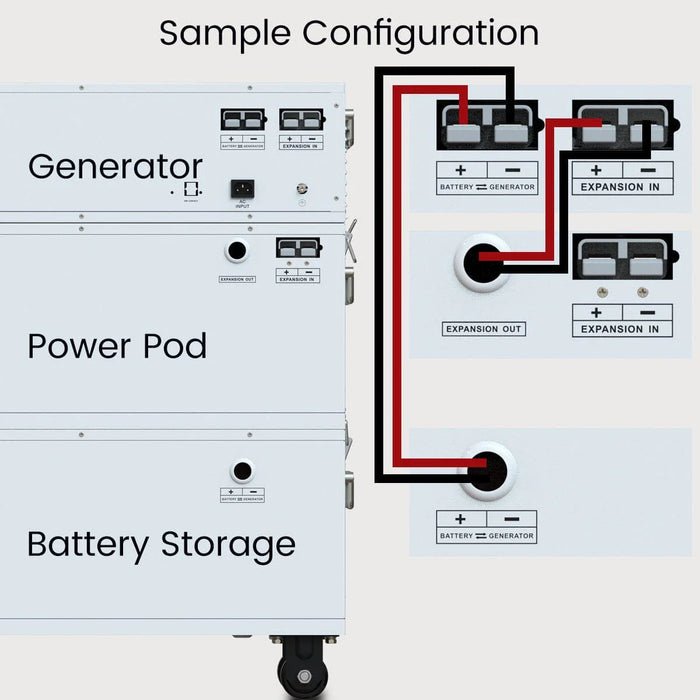

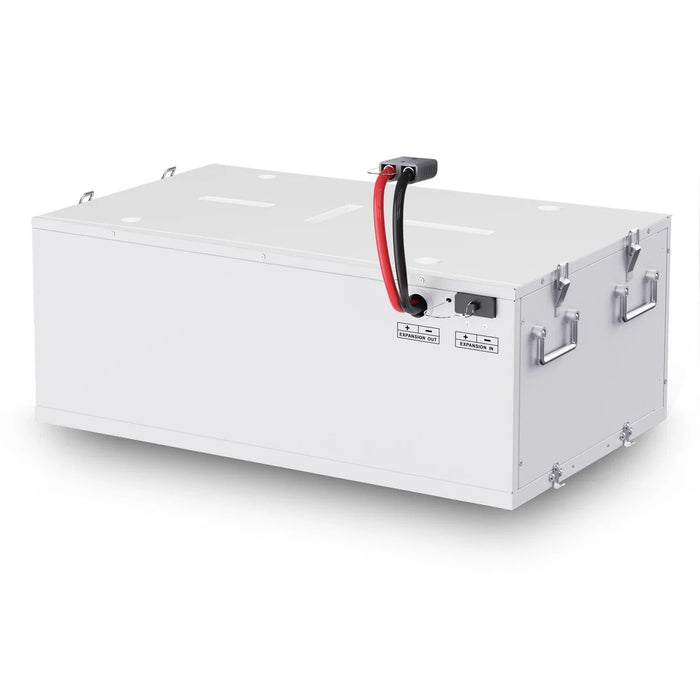

No professional setup required—simply connect the expansion cable from the Power Pod to the Powerhouse or another Power Pod.

Powerhouse Power Panels

The Powerhouse Power Panels use Mono PERC solar cell technology, improving energy conversion rates and performance under low-light conditions.

Premium Design & Performance

• All-Black Frame for Sleek Aesthetics – Provides a modern look, ideal for rooftop installations.
• Superior Low-Light Performance – Advanced glass and cell technology improve performance in shaded or low-light environments.
• Built for Harsh Weather Conditions – Certified to withstand 2400 Pascal wind loads and 5400 Pascal snow loads, ensuring long-term durability.

• (mounting kit sold separately)





Specifications

Powerhouse Power Pod

Battery

• Type: AGM Sealed Lead Acid
• Capacity: 48V 100Ah (4800Wh)
• Self-Discharge: Recommend to recharge every 4 months

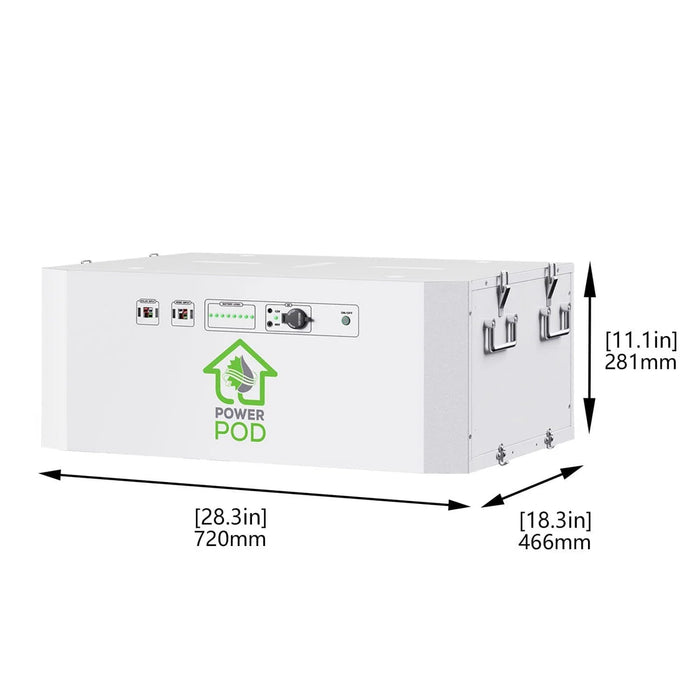

Dimensions

• Powerhouse Size: 28 x 18 x 19 inches (720 × 466 × 472.8mm)
• With Wheels: 28 x 18 x 22.36 inches (720 × 466 × 568mm)

Charging Capabilities

• Solar Charger: 2000W
• Wind Charger: 1000W
• Battery Level Indicator: 8 LED lights

Ports

• 12V Socket: 10A max
• 12V Port: 10A max
• 48V Port: 5A max
• Expansion Cable Length: 43 inches

Temperature & Weight

• Storage Temperature: -5°F to 45°F (-23°C to 111°C)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Weight: 295 lbs (134 kg)



Powerhouse Power Panel

Power Rating

• Maximum Power (Pmax): 410W
• Voltage at Max Power (Vmp): 31.35V
• Current at Max Power (Imp): 13.08A
• Open-Circuit Voltage (Voc): 37.12V
• Short-Circuit Current (Isc): 13.96A
• Module Efficiency: 20.97%

Dimensions & Build

• Size: 67.87 × 44.64 × 1.18 inches (1724 × 1134 × 30mm)
• Cell Type: Monocrystalline PERC (182 × 91mm)
• Number of Half-Cells: 108 (6 × 18)
• Frame Material: Anodized Aluminum Alloy

Front Glass

• 3.2mm Anti-Reflection Coating
• High Transmission, Low Iron, Tempered Glass

Operating Conditions

• Temperature Range: -40°F to +185°F (-40°C to +85°C)
• Junction Box: IP68 Rated, MC4-Compatible Connectors
• Output Cables: 1200mm (47.24 inches)

Fire & Safety Rating

• UL Type 1, IEC Class C

Weight

• 20.5 kg (45.19 lbs) per panel



What's in the Box

Powerhouse Power Pod

• 1 × Nature’s Generator Powerhouse Power Pod
• User Guide

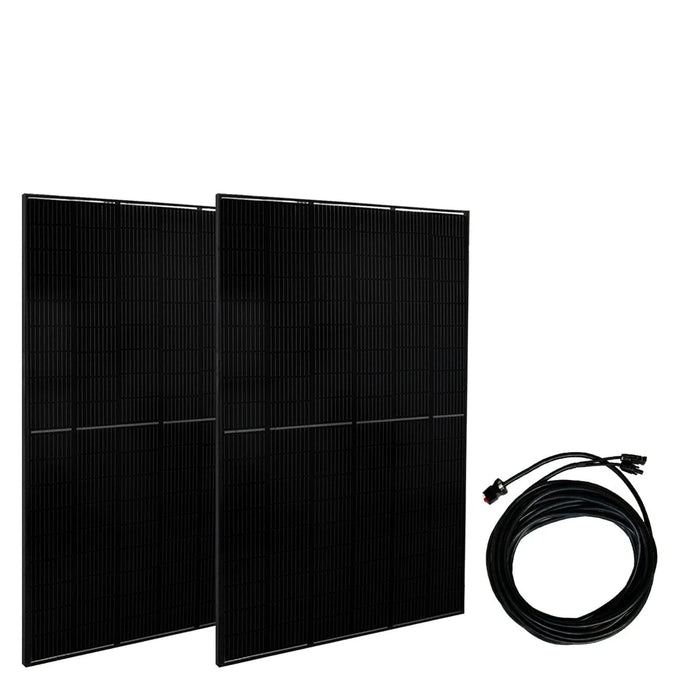

Nature’s Generator Powerhouse Power Panels

• 2 × 410W Powerhouse Power Panels
• 1 × 50ft Solar Panel Cable
• Installation Guide



Warranty

Nature's Generator Limited Warranty

One-Year Warranty

Nature's Generator Inc. provides a one-year limited warranty to the original purchaser, ensuring that this product is free from defects in materials and workmanship for one (1) year from the purchase date when bought from an authorized dealer. King of Generators is a verified dealer of Nature’s Generator, ensuring full warranty coverage. Refurbished products are not covered under this warranty.

Warranty Coverage

If a manufacturing defect is found within the warranty period, Nature's Generator will:

• Repair the product using new or refurbished parts, or

• Replace the product with a comparable new or refurbished model at no cost to the customer.

Replaced products or parts become the property of Nature's Generator. Warranty coverage remains valid when purchased through King of Generators but becomes void if the product is resold or transferred.

What is Not Covered

This warranty does not cover:

• Cosmetic damage

• Damage caused by accidents, misuse, abuse, or negligence

• Force majeure events (e.g., lightning, fire, flood)

• Unauthorized modifications or improper operation

• Connection to an incorrect voltage supply

• Consumables like batteries

• Products with altered or removed serial numbers

For excluded cases, repair and parts replacement fees may apply.
