ACOPOWER Lithium Battery Mono Solar Power Complete System with Battery and Inverter for RV Boat 12V Off Grid Kit

Description

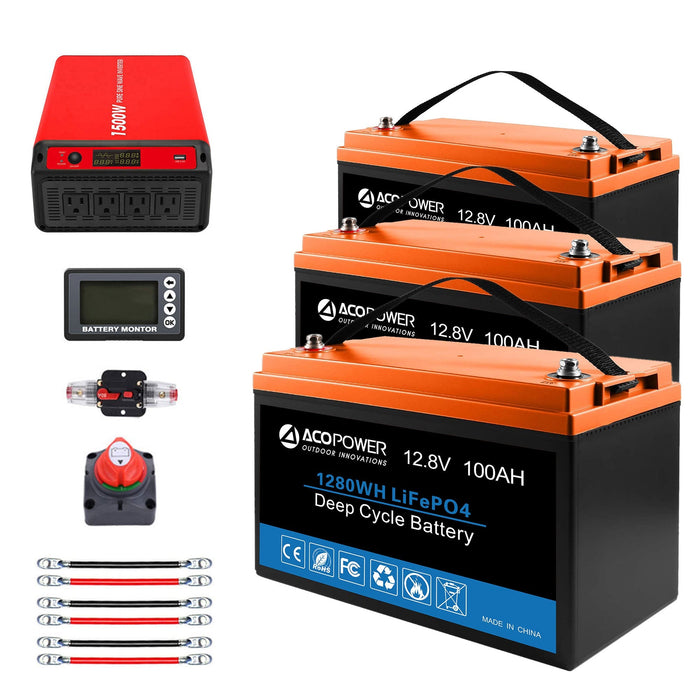

ACOPOWER Lithium Battery Solar Power Complete System

Reliable Off-Grid Power Solution

Efficient & Sustainable Solar Energy

The ACOPOWER Lithium Battery Solar Power Complete System provides a comprehensive solution for renewable energy generation and storage. Designed for RVs, boats, cabins, and backup power needs, this system includes high-performance LiFePO4 batteries, monocrystalline solar panels, MPPT charge controllers, and pure sine wave inverters to ensure a reliable, efficient, and sustainable power supply.

Specifications

12V 100Ah LiFePO4 Deep Cycle Lithium Battery

• Rated Voltage: 12.8V
• Charge Voltage: 14.2 - 14.6V
• Battery Capacity: 1280Wh
• Depth of Discharge (DoD): 100%
• Standard Charge Current: 20A
• Max Continuous Charge Current: 50A
• Max Continuous Discharge Current: 100A
• Dimensions: 12.99" x 6.81" x 8.58"
• Weight: 23.8 lbs

12V 200Ah LiFePO4 Deep Cycle Lithium Battery

• Rated Voltage: 12.8V
• Charge Voltage: 14.2 - 14.6V
• Battery Capacity: 2560Wh
• Depth of Discharge (DoD): 100%
• Standard Charge Current: 50A
• Max Continuous Charge Current: 100A
• Max Continuous Discharge Current: 200A
• Dimensions: 20.55" x 9.44" x 8.58"
• Weight: 48.94 lbs

100W Monocrystalline Solar Panel

• Nominal Voltage: 12V (for battery charging)
• Peak Power (Pmax): 100W
• Peak Circuit Voltage (Voc): 22.5V
• Max Power Voltage (Vmp): 17.48V
• Short Circuit Current (Isc): 6.14A
• Max Power Current (Imp): 5.71A
• Weight: 12.8 lbs
• Dimensions: 40.2" x 20.1" x 1.4"
• Application Class: Class A

1500W Pure Sine Wave Inverter

• Continuous Output: 1500W
• Surge Power: 3000W
• Waveform: Pure Sine Wave
• Protection Features: Under-voltage, overvoltage, overload, short-circuit protection
• Weight: 7.79 lbs
• Dimensions: 12.94" x 7.52" x 3.86"

3000W Pure Sine Wave Inverter

• Continuous Output: 3000W
• Surge Power: 6000W
• Waveform: Pure Sine Wave
• Protection Features: Under-voltage, overvoltage, overload, short-circuit protection
• Weight: 12.1 lbs
• Dimensions: 18.23" x 9.53" x 4.65"

MPPT Solar Charge Controller 30A

• Rated Charge Current: 30A
• Battery Voltage Range: 8V - 32V
• Max PV Open Circuit Voltage: 100VDC
• Max PV Input Power:
  • 12V: 390W
  • 24V: 780W
• Compatible Batteries: Sealed, Gel, Flooded, Lithium-ion, LiFePO4

MPPT Solar Charge Controller 40A

• Rated Charge Current: 40A
• Battery Voltage Range: 8V - 32V
• Max PV Open Circuit Voltage: 100VDC
• Max PV Input Power:
  • 12V: 520W
  • 24V: 1040W
• Compatible Batteries: Sealed, Gel, Flooded, Lithium-ion, LiFePO4

MPPT Solar Charge Controller 50A

• Rated Charge Current: 50A
• Battery Voltage Range: 8V - 68V
• Max PV Open Circuit Voltage: 150V
• Max PV Input Power:
  • 12V: 625W
  • 24V: 1250W
  • 36V: 1875W
  • 48V: 2500W
• Compatible Batteries: Sealed (Default), Gel, Flooded, Lead-acid, Lithium-ion

MPPT Solar Charge Controller 60A

• Rated Charge Current: 60A
• Battery Voltage Range: 8V - 68V
• Max PV Open Circuit Voltage: 150V
• Max PV Input Power:
  • 12V: 750W
  • 24V: 1500W
  • 36V: 2250W
  • 48V: 3000W
• Compatible Batteries: Sealed (Default), Gel, Flooded, Lead-acid, Lithium-ion

Warranty

Warranty Policy

Limited Warranty King of Generators warrants to the original consumer purchaser that Acopower products will be free from defects in workmanship and material under normal consumer use during the applicable warranty period. This warranty covers defects in materials and workmanship but does not cover misuse, abuse, modifications, or accidental damage.

Warranty Period

• Generators: Covered under a 1-year limited warranty.
• Solar Panels: Covered under a 5-year limited warranty.
• Other Products: Warranty coverage varies; please refer to product specifications.

The warranty period begins from the original date of purchase. Proof of purchase, such as a sales receipt, is required to establish the warranty period.

Warranty Service If a product fails due to defects in materials or workmanship during the warranty period, we will replace or repair the item at our discretion. Replacement products assume the remaining warranty of the original product.

Exclusions This warranty does not cover:

• Damage caused by misuse, abuse, modifications, or accidents.
• Repairs attempted by unauthorized personnel.
• Products purchased from unauthorized sellers.
• Battery cells unless charged within seven (7) days of purchase and at least once every six (6) months thereafter.

How to Obtain Warranty Service To request warranty service, please contact King of Generators Support at info@kinggenerators.com with the following details:

• Proof of purchase
• Product details and issue description
• Photos or videos (if applicable)

We will assess the claim and provide further instructions on the warranty process.

For additional inquiries, please reach out to info@kinggenerators.com.
