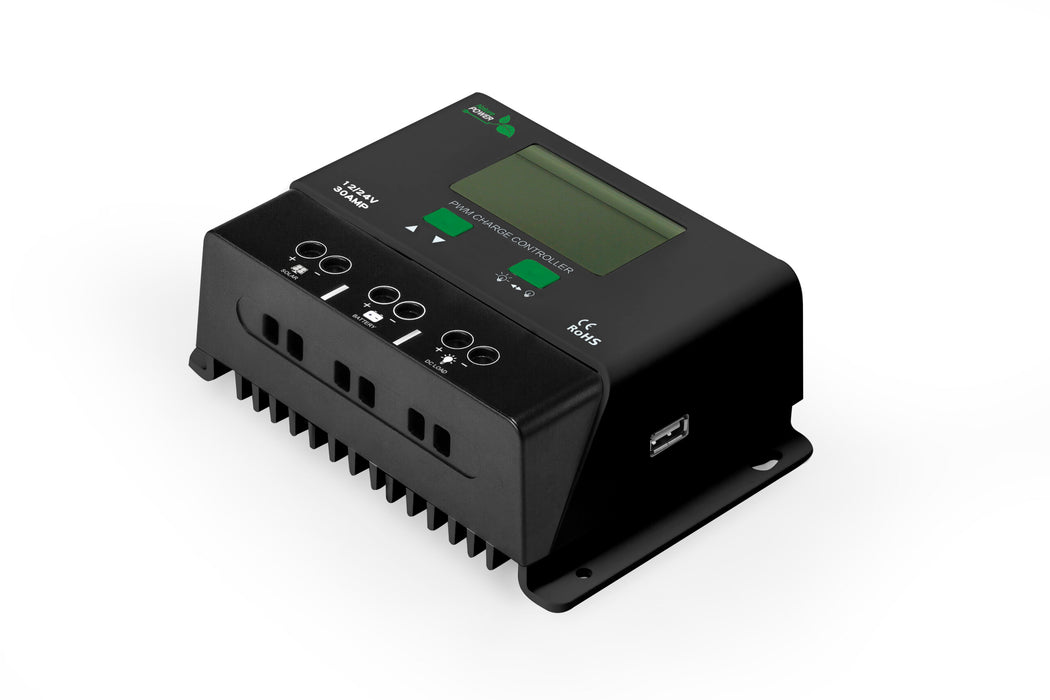

30 AMP Solar Charge Controller – Smart Power Regulation for Efficient Battery Charging

Description

30 AMP Solar Charge Controller – Smart Power Regulation for Efficient Battery Charging

The 30 AMP Solar Charge Controller is designed to regulate the current and voltage from solar panels to prevent overcharging and optimize battery performance. Essential for any solar panel rated 12 watts or higher, this controller ensures safe and efficient charging for 12V and 24V battery systems.

It features pre-set charging modes compatible with most common battery types, automatic voltage detection, and multiple load control options. Built with industrial-grade protection, it includes reverse polarity safeguards and a 5V 1A USB port for charging mobile devices.

The ChargePro mobile app allows for remote monitoring and operation via smartphones. The app is available for download on the iOS App Store and Google Play Store.

Warranty: 1-Year Limited Warranty

Specifications

Charge Controller Type:

• Pulse Width Modulation (PWM)

DC Input:

• Maximum Solar Input Voltage: <55V
• Maximum Input Current: 30A
• Maximum Solar Panel Rating: 12V/450W, 24V/900W

Charge Controller Output to Battery:

• Battery Rating: 12V / 24V (Auto Detect)
• Battery Compatibility: SEL / GEL / FLD / Li / Use
• Charge Voltage Range: 9~15V (Default: 14.2V)
• Float Voltage Range: 9~15V (Default: 13.8V)

DC Load:

• Maximum Load Current: 30A

Protection Features:

• PV Reverse Polarity Protection
• Boost Charge Recovery Voltage: 13.2V
• Over-Discharge Recovery Voltage: 12.6V

Downloads

• 60032 Flyer
• 60032 Manual
