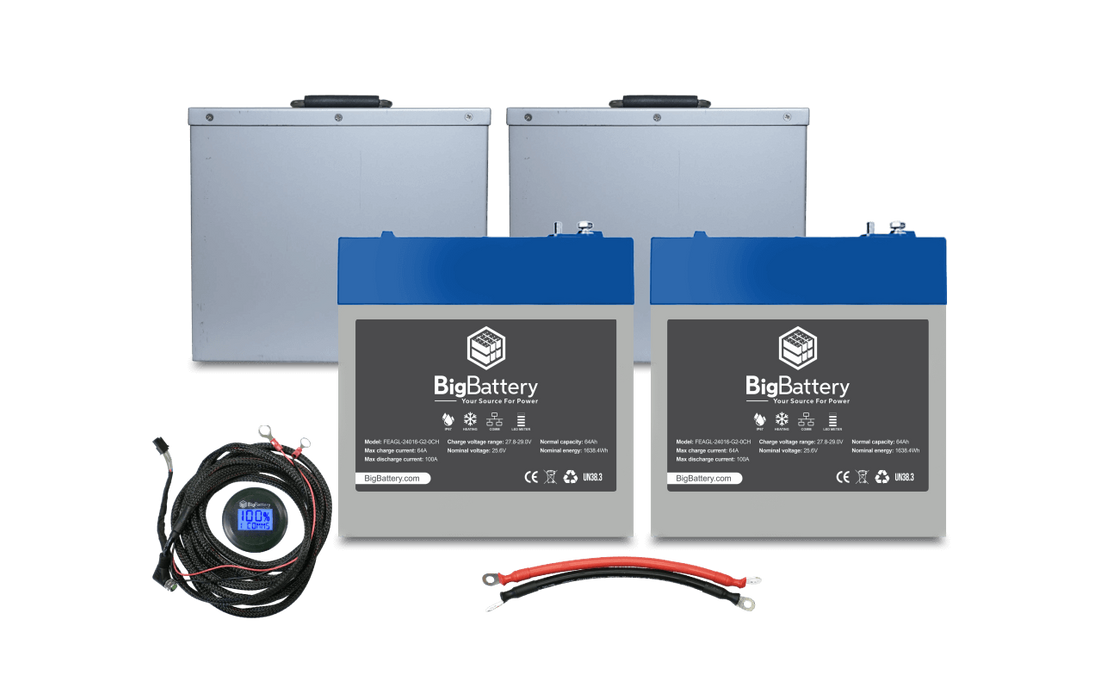

24V 2x EAGLE 2 Comms Scissor Lift Kit

Description:

Upgrade your scissor lift’s performance and reliability with our cutting-edge GC2 Form Factor LFP (Lithium Iron Phosphate) Scissor Lift Upgrade Kit. Purpose-built to replace traditional lead-acid batteries, this kit offers advanced power capabilities, a precision-balanced counterweight system, and plug-and-play installation—making it a hassle-free, high-performance solution for a wide range of scissor lift models.

Key Features:

High-Performance LFP Batteries
Experience increased uptime and reduced maintenance costs with lithium iron phosphate batteries that deliver:

• Longer life cycles

• Zero maintenance

• Greater energy efficiency

• Faster charging times

Balanced Counterweight System
Our system includes a custom-designed counterweight to ensure stability and safety:

• Each lead-acid replacement kit is engineered to match the original 248 lbs (4 x 62 lbs Trojan T-105 batteries)

• Each 24V EAGLE 2 battery weighs 33 lbs

• Each counterweight adds 91 lbs
  This ensures optimal balance and compatibility with your existing equipment.
  Note: Always confirm the minimum required weight in your battery bay, as indicated on your equipment or in your user manual.

Eco-Friendly & Safe
Built with safety and sustainability in mind, the LFP chemistry eliminates toxic materials and reduces environmental impact.

• No lead or acid

• No battery vapors

• Reduced risk of overheating
  Perfect for indoor/outdoor and sensitive environments like food service or warehousing.

Easy, Plug-and-Play Installation
Get up and running quickly with a simple installation process that minimizes downtime. No special tools or extensive modifications required.

Long-Term Cost Savings
Enjoy a low total cost of ownership with:

• Extended battery lifespan

• Maintenance-free operation

• High performance and reliability

Technical Specifications:

• SKU: FEAGL-24016-G2-0CH

• GTIN-12 (U.P.C.): 850061252234

• System Voltage: 24V

• Nominal Voltage: 25.6V

• Chemistry: LiFePO4 (LFP)

• Capacity: 1.63 kWh / 64Ah

• Charging Voltage Range: 27.8V – 29V

• Max Charge Voltage: 29.2V

• Operating Voltage Range: 24V – 28.8V

• Suggested Low Voltage Cutoff: 24V – 25.4V

• BMS Cutoff Range: 21V – 23.5V

• Cell Configuration: 8S

• Max Continuous Discharge Current: 100A

• Max Continuous Power: 2560W

• Max Discharge Peak Current: 200A (5 sec max)

• Max Charge Current: 64A

Temperature & Environment:

• Charge Temp Range: -4°F to 131°F (-20°C to 55°C)

• Discharge Temp Range: -4°F to 140°F (-20°C to 60°C)

• Optimal Discharge Temp: 59°F to 95°F (15°C to 35°C)

• Storage Temp (max 3 months): 23°F to 95°F (-5°C to 35°C)

• Storage Temp (max 12 months): 32°F to 77°F (0°C to 25°C)

Physical Specs:

• Battery Weight: 38 lbs (17.2 kg)

• Total System Weight: 248 lbs (112.5 kg)

• Dimensions (L x W x H): 7.1 in x 10.2 in x 10.8 in (180 x 260 x 274 mm)

• Max Parallel Connections: Up to 10 units

• Protection Rating: IP67 / NEMA 6

• Communications: CANBus

• Self-Heating Capability: Yes
