Nature's Generator Powerhouse Hybrid Platinum Plus WE System

Description

Nature’s Generator Powerhouse Hybrid Platinum Plus WE System – Ultimate Off-Grid Solar + Wind Backup Power

Take total control of your energy independence with the Nature’s Generator Powerhouse Hybrid Platinum Plus WE System—a powerhouse hybrid solution engineered to deliver off-grid, renewable energy with maximum reliability and expandability. Designed for homes, cabins, job sites, and emergency backup, this all-in-one system combines solar, wind, and hybrid battery technology to ensure you never run out of power—no matter the conditions.

All-in-One Renewable Energy System

This complete package includes:

• (8) High-Efficiency 410W Mono PERC Solar Panels for optimal sunlight absorption—even in low light.

• (1) Nature’s Generator Wind Turbine, capable of harvesting wind energy at speeds up to 110 MPH.

• (1) Eco Intelligent Power Pod featuring both 4800Wh LiFePO4 and 4800Wh sealed lead-acid batteries, supporting infinite expandability.

• (1) Nature’s Generator Powerhouse, delivering up to 7200W of pure sine wave output at 120V/240V split phase.

Solar + Wind + Hybrid Battery = Unmatched Energy Freedom

Harness the power of both sun and wind while enjoying the unique flexibility of hybrid battery storage. The Eco-Intelligent Power Pod supports mixed-use of old and new lithium or lead-acid batteries—giving you the freedom to expand your system affordably without compatibility concerns.

With over 9600Wh total capacity, dual solar/wind charging inputs, and modular expansion, the Powerhouse Hybrid Platinum Plus System grows with your needs—perfect for large households, remote properties, or mission-critical off-grid applications.

Key Features

• 7200W Pure Sine Wave Output (120V/240V Split Phase) – Power high-demand appliances with clean, stable electricity.

• 9600Wh Total Battery Capacity – Featuring both LiFePO4 (6000+ cycles) and SLA for extended power availability.

• Infinite Battery Expansion – Connect more pods using intelligent hybrid technology.

• Solar Charger (2000W) + Wind Charger (1000W) – Simultaneous input support for 24/7 charging.

• Durable Solar Panels (20.97% Efficiency) – High-performance Mono PERC design with anti-reflection glass for low-light conditions.

• Heavy-Duty Wind Turbine – Generates 350W at 27 MPH; constructed from weather-resistant fiberglass nylon and cast aluminum.

Specifications

Powerhouse Lithium Power Pod

General

• Cell Type: Lithium Iron Phosphate (LiFePO4, LFP)
• Rated Voltage: 48V
• Rated Capacity: 100Ah
• Life Cycle: 6,000+ cycles (80% Depth of Discharge)
• Designed Life: 10 years

Dimensions

• 28.3 x 18.3 x 8.0 inches (720 x 466 x 200mm)

Temperature Range

• Charging: 32 ~ 113°F (0 ~ 45°C)
• Discharging: 14 ~ 113°F (-10 ~ 45°C)
• Storage: 32 ~ 104°F (0 ~ 40°C)

Protection & Alarms

• Overcharge Protection
• Overcurrent Protection
• Over-Discharge Protection
• Short Circuit Protection
• Auto Battery Balancing
• Double Shield Protection
• Reverse Polarity Protection
• Temperature Protection

Ports

• Expansion Cable: 43 inches
• Expansion Port: 175A Max

Balancing Method

• Passive Balancing

Charging Capabilities

• Solar Charger: 2000W
• Wind Charger: 1000W

Weight

• 139 lbs (63 kg)

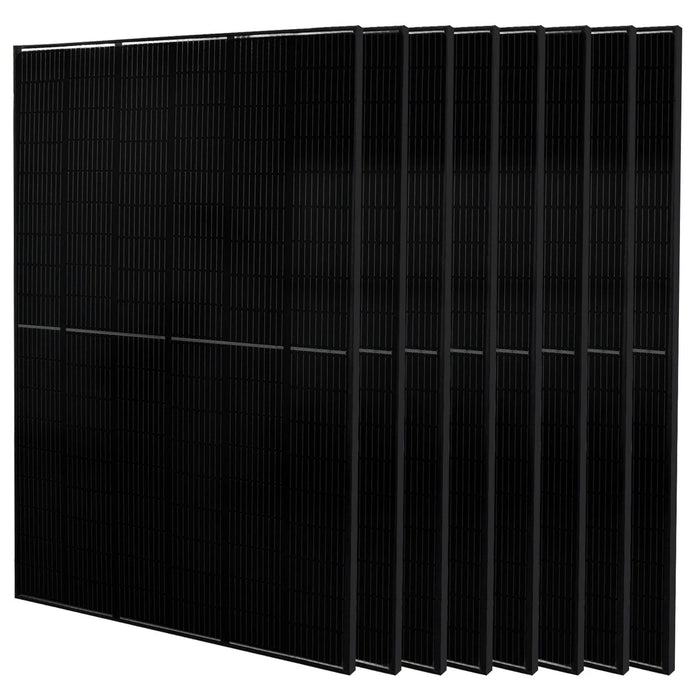

Powerhouse Power Panel

Power Rating

• Maximum Power (Pmax): 410W
• Maximum Power Voltage (Vmp): 31.35V
• Maximum Power Current (Imp): 13.08A
• Open-circuit Voltage (Voc): 37.12V
• Short-circuit Current (Isc): 13.96A
• Module Efficiency STC: 20.97%

Dimensions & Characteristics

• Size: 67.87 x 44.64 x 1.18 inches (1724 x 1134 x 30mm)
• Cell Type: Mono PERC 182 x 91mm
• Number of Half-Cells: 108 (6x18)
• Frame: Anodized Aluminum Alloy

Front Glass

• 3.2mm Tempered Glass with Anti-Reflection Coating for High Transmission

Operating Temperature

• -40°F to +185°F (-40°C to +85°C)

Junction Box

• IP68 Rated, Compatible with MC4 Connectors

Output Cables

• 47.24 inches (1200mm)

Fire Rating

• UL: Type 1, IEC: Class C

Weight

• 45.19 lbs (20.5 kg)

Nature's Generator Powerhouse

Battery

• Type: AGM Sealed Lead Acid
• Capacity: 48V 100Ah (4800Wh)
• Self-discharge: Recharge recommended every 4 months

Dimensions & Characteristics

• Powerhouse: 28 x 18 x 19 inches (720 x 466 x 472.8mm)
• With Wheels: 28 x 18 x 22.36 inches (720 x 466 x 568mm)

Inverter

• Output Power: 7200W Max
• Output Voltage: 240V Split Phase / 120V Single Phase
• Output Frequency: 60Hz
• Output Waveform: Pure Sine Wave
• Output Phase: Split Phase

Operating Temperature

• 32°F – 104°F (0°C – 40°C)

Ports

• USB-A: 5V, up to 3A (15W)
• 12V DC: Up to 20A (240W Max)
• Expansion Port: 350A Fuse

Storage Temperature

• 23°F – 111°F (-5°C – 45°C)

Charging Capabilities

• AC Charger: 1300W, 120V AC
• Solar Charger: 2000W
• Wind Charger: 1000W

Weight

• 434 lbs (197 kg)

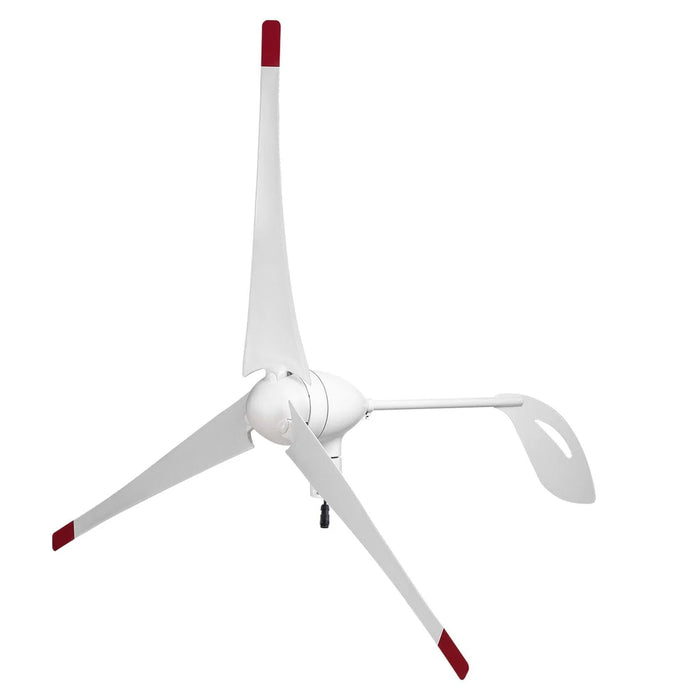

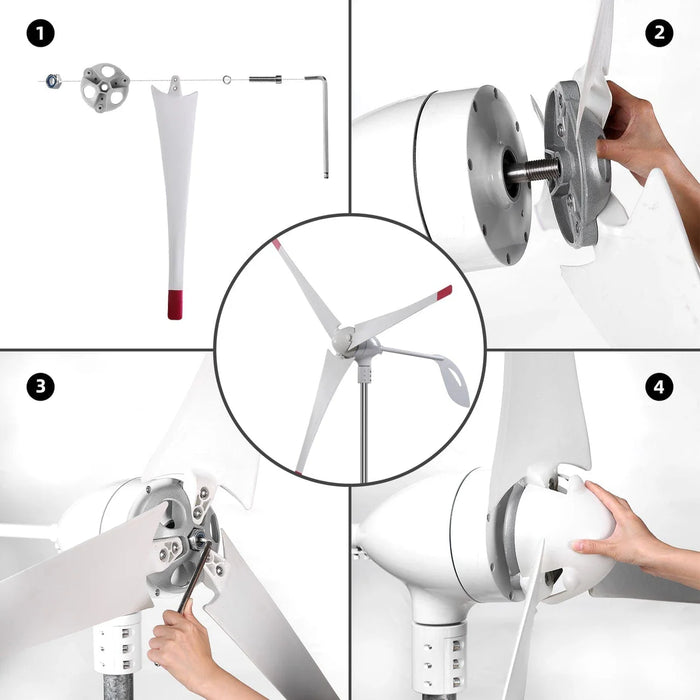

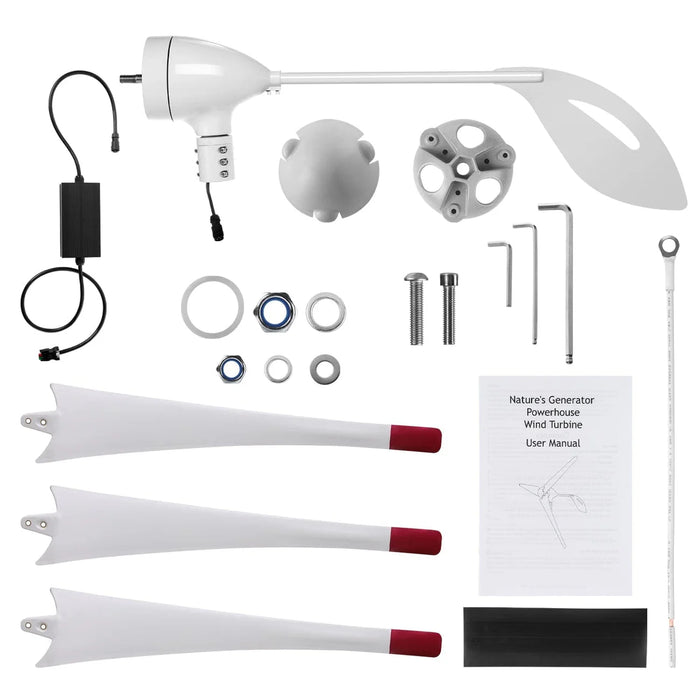

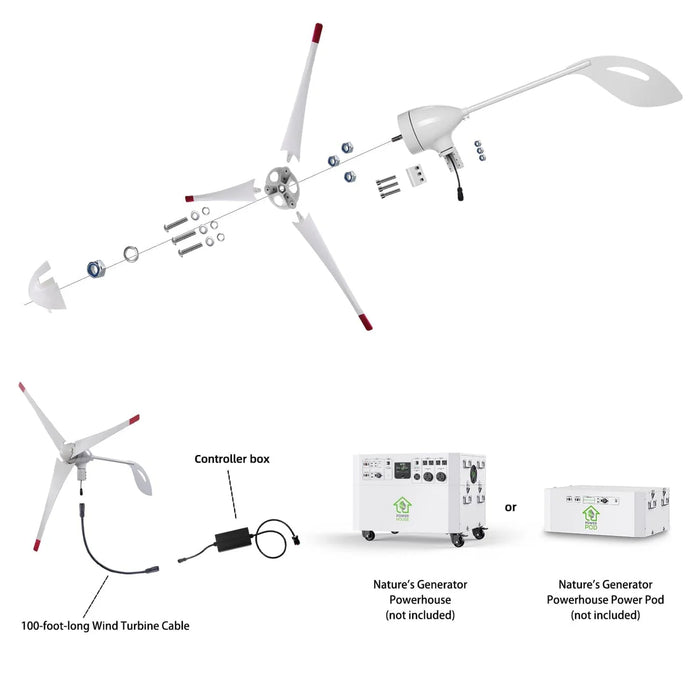

Powerhouse Wind Turbine

Power Rating

• Rated Power: 350W @ 27 MPH
• Maximum Wind Speed: 110 MPH

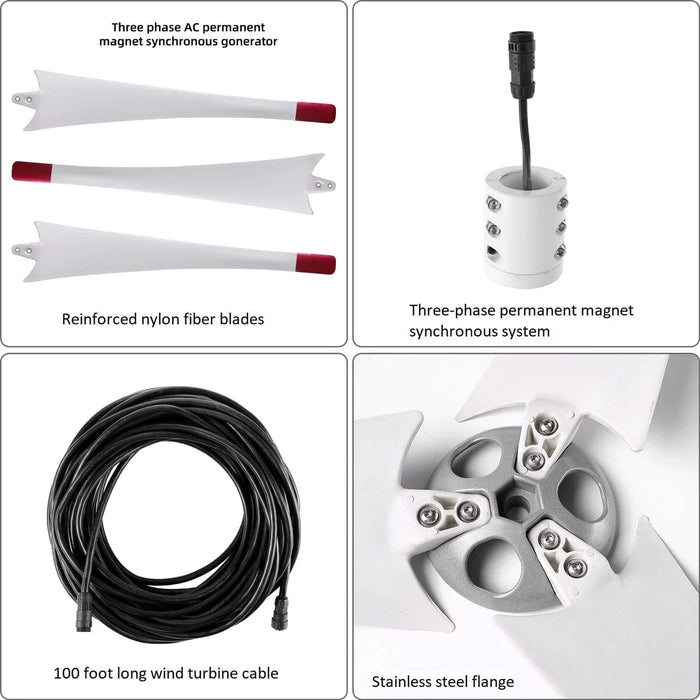

Material

• Blades: Fiberglass Nylon Composite
• Body: Cast Aluminum Alloy with Powder Coating
• Cable: 12AWG Pure Copper

Connectors

• Wind Turbine Cable: Weatherproof M19 3P Connectors
• Wind Input Connectors: Anderson Connectors
• Yaw: Fits 1.5-Inch Schedule 40 Pipes or Towers

General

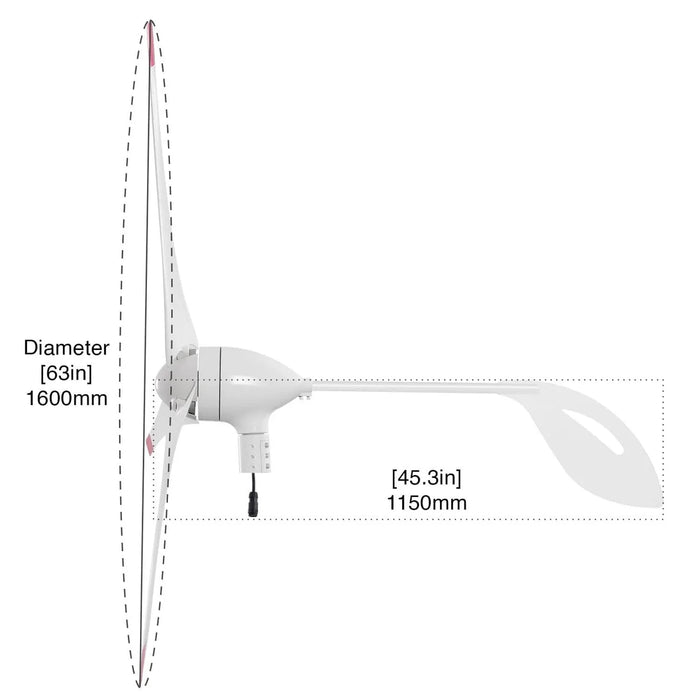

• Rotor Diameter: 63 inches (1.6m)
• Certifications: CE RoHS

Weight

• 37 lbs (17 kg) (excluding cables and controller box)
